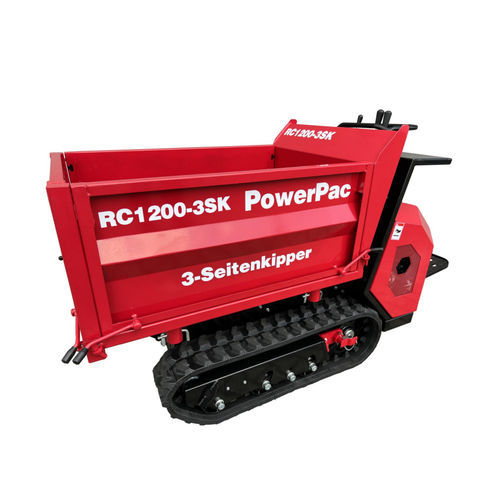

Crawler mini dumper RC1200-3SK

gasolineside-unloadinglift-skip

• HONDA Benzin Motor GX390 (11HP) + electric start • new own design • incl. motor cover and control panel • Danfoss (Hydr.motor) and • Hydrocontrol (pump/valves) • Piston pump: 12 cc + 12 cc + 6 cc, the max. speed is up to 5.5 km/h, • there are three pumps. • The piston pump system is the highest quality and most powerful system in connection with our device, this system can carry 100% of the 1200 kg load capacity for transportation (on any slope), two pumps control one side of the drive and the third controls the tipping. • This is the only way to ensure that the machine can be driven as smoothly as possible. With other types of pump, the driving behavior is very suddenly jerky / wobbly, which means that it is generally not possible to drive smoothly and precisely. • Battery box installed safely and according to standard • Rear running board easy to push up and down using a tension spring. • Tipping out via the lower opening of the drop sides • Drop sides can be removed without tools • not for screwing.
