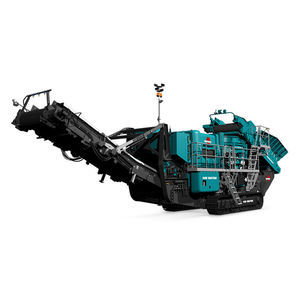

Cone crushing and screening plant 1150 MAXTRAK PRE-SCREEN
mobilecrawler

cone crushing and screening plant
cone crushing and screening plant
Add to favorites
Compare this product


Characteristics

Technology
cone
Mobility
mobile
Other characteristics
crawler
Capacity

Max.: 330 t/h
(202.1 lb/s)

Min.: 0 t/h
(0 lb/s)

Motor power

328 kW, 331 kW
(445.96 hp, 450.03 hp)

Weight

51,860 kg, 52,020 kg
(114,331.73 lb, 114,684.47 lb)

Description

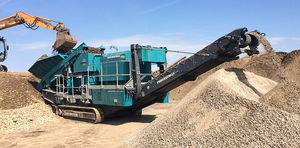

The Powerscreen® 1150 Maxtrak Pre-Screen is a high performance, medium sized track mobile cone crusher with an independent pre-screening system. At the heart of the Maxtrak is the Automax® cone crusher with hydraulic setting, tramp release & unblocking system. Its unique crushing action provides excellent capacity, high reduction & good product cubicity for the production of high quality aggregate & sub-base materials. The added pre-screen option allows a sized product or dirt to be removed from the feed prior to entering the cone, thus maximising output capacity and quality. The 1150 Maxtrak Pre-Screen features a patent pending hydraulic folding system which allows for rapid conversion between pre-screen and direct feed configurations providing unrivalled versatility. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life & optimal product shape. Features & benefit Renowned Automax® crusher technology Accepts clean all in feed Excellent product shape High reduction ratio Cone feed box level control to maintain choke feeding Hydraulic crusher setting Cone overload protection Heavy duty chassis and track frame Metal detector Dust suppression system Direct drive – Increased fuel efficiency and reduced operating costs Patent pending hydraulic folding system provides rapid conversion between pre-screen and direct feed configurations Fitted with Powerscreen Pulse Telematics system
