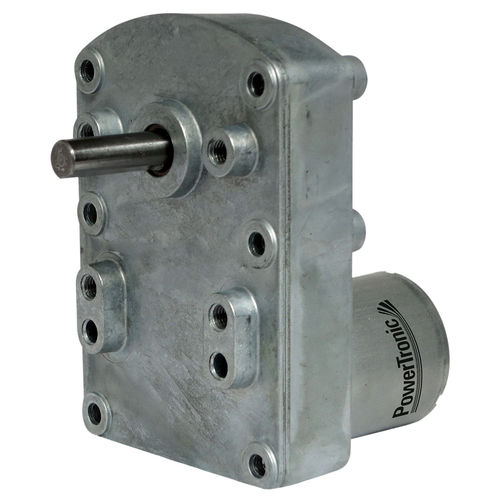

Spur gear-motor SF64.92-BL36.40

BLDCparallel-shaft10 W...50 W

Additional information Width x height mm:63,5 x 92 Rated Voltage VDC:24 Rated Torque Ncm:36 – 3500 Speed rpm:2,5 – 331 Gearmotor Gear Ratio:11.8, 14.1, 17, 18.8, 21.3, 25.2, 28.3, 31.5, 42.5, 63, 85, 126, 425, 584 Rated Torque (Ncm):36,43,51, 57, 60, 80, 90, 90, 130, 190, 260, 380, 1280, 920 Rated Speed (min '):331, 277, 229, 208, 183, 155, 138, 124,92, 62,46 , 31, 9.2, 7 Rel. Humidity: 20 to 85% | Ambient Temp.: - 20 to +80 °C | Net Weight max. 0.58 kg Motor Rated Voltage (V): 24 No Load Speed (min ’): 4700 No Load Current (A): 0.26 Rated Speed (min ') : 3900 Rated Current (A): 0.6 Rated Torque (Ncm): 3.6 Rated Power (W) : 14.7 Radial Load (FR): 150N (10mm from face mounting) Axial Load (FA): 75N Options - Encoder - Rear Shaft - Leads - Connector - Special Shaft
