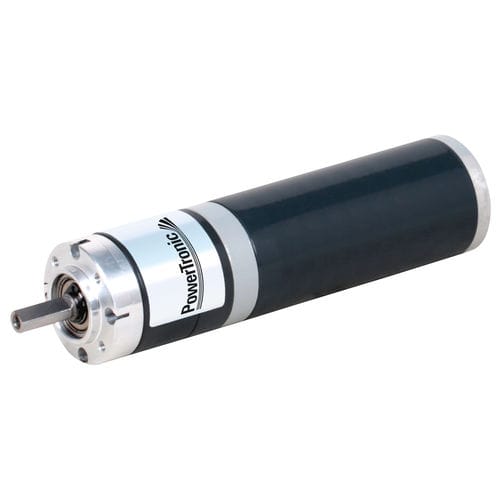

Planetary gear-motor PL32Z-BL32.87
three-phaseBLDCcoaxial

planetary gear-motor
planetary gear-motor
Add to favorites
Compare this product

Go to the Powertronic Drive Systems GmbH website for more information

Characteristics

Motor type
three-phase, BLDC
Type
planetary
Shaft orientation
coaxial
Power
10 W...50 W
Voltage
24 V
Torque
1 - 5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm
Product applications
industrial
Other characteristics
low-noise, high-torque

Description

Additional information Rated Voltage V:24 Rated Torque Ncm:up to 400 Speed rpm:16-1351 Gearmotor Gear Ratio:3.7;4.29;5.18;6.75;14;19;25;29;35;46;51;68;79;93;100;115;130;150;169;195;236;308 Rated Speed (min'1):1081;933;772;592;286;210;160;138;114;86;78;58;50;43;40;34;30;26;23;20;17;13 Rated Torque (Ncm):10;11;13;12;33;44;58;67;81;107;107;142;165;195;209;241;272;314;354;400;400;400 Réduction Stage:16;19;22;29;54;74;97;113;136;179;179;238;277;326;350;400;400;400;400;400;400;400 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +80°C | Net Weight max. 650g Motor Model:2420-40S Rated Voltage V:24 Rated Power W:20 No Load Current A:0.5 No Load Speed min1:5300 Rated Current A:1.3 Rated Speed min1:4000 Rated Torque Ncm:4.8 Options -Encoder -Rear Shaft -Special Shaft
