- Powertronic Drive Systems GmbH

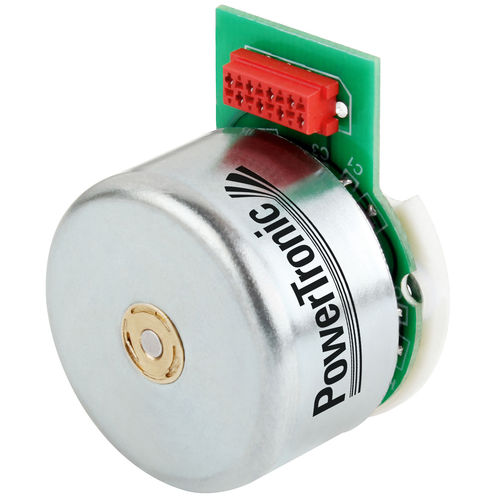

BLDC motor BL32.24three-phase24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, three-phase
- Voltage
- 24 V, 12 V
- Configuration
- external rotor
- Power
2.2 W
(0 hp)- Torque
0.006 Nm
(0.004425 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 8,000 rpm
(50,265.4825 rad.min-1)3,750 rpm
(23,561.9449 rad.min-1)- Diameter
31.5 mm
(1.24 in)
Description
Additional information
Rated Voltage VDC:12 / 24
Rated Power W:2,2
Speed rpm:2.000-8.000
Technical Data
Rated Voltage (V):24
Rated Speed (min'):3750
Rated Torque (Ncm):0.6
Rated Power (W):2.16
Rated Current (A):0.15
No Load Speed (min '):5300
No Load Curent:0.045
Stall Torque (Ncm):2.4
Stall Current (A):0.45
Rotor Inertia (gcm2):4.9
Résistance (Q):49
Inductance (mH):26
Net Weight (g):60
Insulation Class:E
Sensor Supply Range:4.2-24 V
Protection:IP 40
Catalogs
BLDC Motor Type BL32.24
1 Pages
Product Catalogue DC | BLDC
128 Pages
