Planetary gear-motor PL32-DC30.47
DCcoaxial0 W...10 W

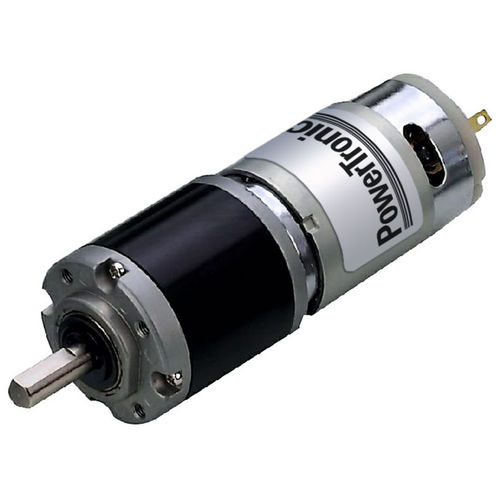

Planetary gear-motor - PL32-DC30.47 - Powertronic Drive Systems GmbH - DC / coaxial / 0 W...10 W
Planetary gear-motor - PL32-DC30.47 - Powertronic Drive Systems GmbH - DC / coaxial / 0 W...10 W
Add to favorites
Compare this product

Characteristics

Motor type
DC
Type
planetary
Shaft orientation
coaxial
Power
0 W...10 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 0.5 - 1 Nm, 0.1 - 0.2 Nm, 0.2 - 0.5 Nm, 0 - 0.1 Nm
Product applications
industrial

Description

Additional information Rated Voltage V:12 / 24 Speed rpm:7-1170 Gearmotor Gear Ratio:5;14;19;27;35;51;71;100;139;189;264;516;721;939 12V Rated Torque (Ncm):4.5;11;15;21;27;34;47;66;91;100;120;120;120;120 Rated Speed (min-1):1140;430;310;221;170;117;83;60;44;32;24;13;10;7 24V Rated Torque (Ncm):5.4;12;17;24;31;40;55;78;100;120;120;120;120;120 Rated Speed (min-1):1170;445;320;229;176;121;87;62;45;34;25;13;10;7 Length L (mm):67.2;73.6;73.6;73.6;73.6;80.0;80.0;80.0;80.0;86.4;86.4;86.4;86.4;86.4 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight max. 282g Motor Rated Voltage (V):12;24 Rated Torque (Ncm):1.1;1.3 Rated Speed (min-1):5950;6160 Rated Current (mA):≤900;≤500 No Load Speed (min-1):7300;7300 No Load Current (mA):≤150;≤80 Rated Power (W):7;8.5 Options -Helical Gearing -Encoder -EMC Filter -Leads -Connector -Special Shaft -Special Voltage
