DC gear-motor PL32R-DC30.47
planetarybevelright angle

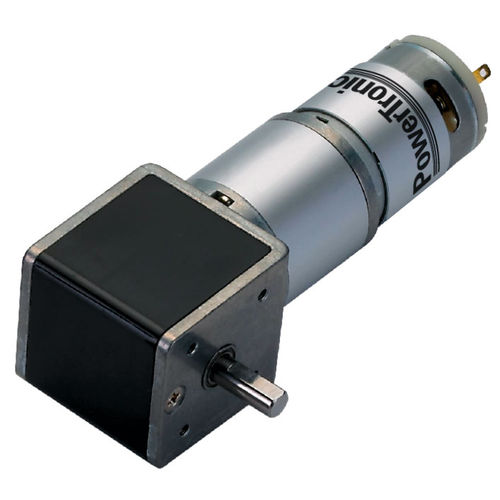

DC gear-motor - PL32R-DC30.47 - Powertronic Drive Systems GmbH - planetary / bevel / right angle
DC gear-motor - PL32R-DC30.47 - Powertronic Drive Systems GmbH - planetary / bevel / right angle
Add to favorites
Compare this product

Characteristics

Motor type
DC
Type
planetary, bevel
Shaft orientation
right angle
Power
0 W...10 W
Voltage
6 V, 24 V, 12 V, 48 V
Torque
1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
Product applications
industrial

Description

Additional information Rated Voltage VDC:6-48 Rated Power W:up to 8.5 Speed rpm:7-1170 Gearmotor Gear Ratio:5;14;19;27;35;51;71;100;139;189;264;516;721;939 12V Rated Torque (Ncm):4;9;12;17;23;28;39;54;76;83;116;120;120;120 Rated Speed (min-1):1140;430;310;220;170;116;83;60;43;32;24;13;10;7 24 V Rated Torque (Ncm):4.7;11;15;21;27;33;46;64;90;98;120;120;120;120 Rated Speed (min-1):1170;445;320;229;176;120;87;62;45;34;25;13;10;7 Length L (mm):105.2;111.6;111.6;111.6;111.6;118.0;118.0;118.0;118.0;124.4;124.4;124.4;124.4;124.4 Rel. Humidity: 20 to 85% | Ambient Temp.: -10 to +60°C | Net Weight max. 410g Motor Rated Voltage (V):12;24 Rated Torque (Ncm):1.1;1.3 Rated Speed (min-1):5950;6160 Rated Current (mA):≤900;≤500 No Load Speed (min-1):7300;7300 No Load Current (mA):≤150;≤80 Rated Power (W):7;8.5 Options -Connector -Special Voltage -Encoder -Helical Gearing -EMC Filter -Special Shaft -Leads
