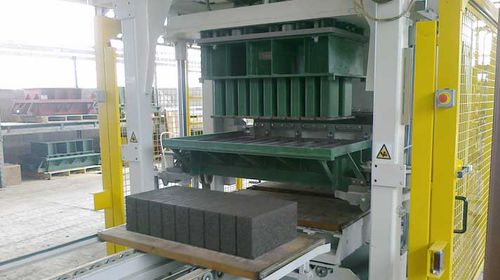

Concrete block making machine Syncro series

automatic

Stationary concrete products machine model SYNCRO SPECIFICATIONS OF THE PRODUCT PRODUCTION MACHINE SYNCRO The concrete products making machine model SYNCRO works with either wooden or steel production pallets ranging in length from 1.200 to 1.400 mm. and in width from 600 to 900 mm. The SYNCRO is a stationary and automatic block machine, robust but user-friendly for its operation and maintenance alike and with a significant productivity, mounting a frequency controlled synchronised system of vibration powered by a 15 Kw motor. The circuit of the plant may go aligned in line or in U shape, with a set of 5 levels elevator and lowerator stackers to help the handling of the production pallets to the curing chambers by means of a forklift. Regarding the packing optionally a pneumatic or an automatic electronic cuber can be installed. The circuit in U shape allows adding turning and lubricating stations for production pallets. Equipment to manufacture products with second layer (face mix) can be supplied with this machine in all its different options.
