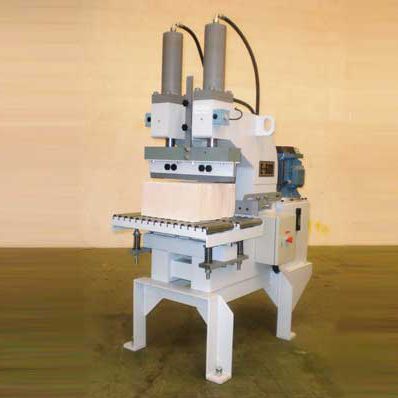

Splitting machine A600,E600

splitting machine
splitting machine
splitting machine
Add to favorites
Compare this product


Description

Splitters SEMIAUTOMATIC SPLITTER MACHINE, MODEL E-600 Technical specifications Semiautomatic operation. Equipped with lames and standing platform to deal with blocks from 40 to 270 mm. of height (available until 420 mm.). Lames with 600 mm of length (available up to 800 mm.) Power of motor of hydraulic group: 7,5 HP. Hydraulic pressure: 115 kg/cm2 Cutting strength: 17.500 kgs. AUTOMATIC SPLITTER, MODEL A-600/4 Technical specifications Automatic operation. Equipped with upper, lower, and lateral blades (4 ways action). Operates with mechanically and hydraulically compensated strains. Length of cut: 610 mm. Height of cut: 40 - 230 mm. Installed power: 15 or 20 HP. Cutting strength: 20.000 Kg. Production: Can split 24 blocks (12 cuts) or 36 blocks (18 cuts) per minute (depending on the model).
