Forging furnace H3
chambergasfor steel

forging furnace
forging furnace
forging furnace
forging furnace
forging furnace
forging furnace
forging furnace
Add to favorites
Compare this product


Characteristics

Configuration
chamber
Heat source
gas
Other characteristics
for forging, for steel
Maximum temperature

1,300 °C (2,372 °F)

Description

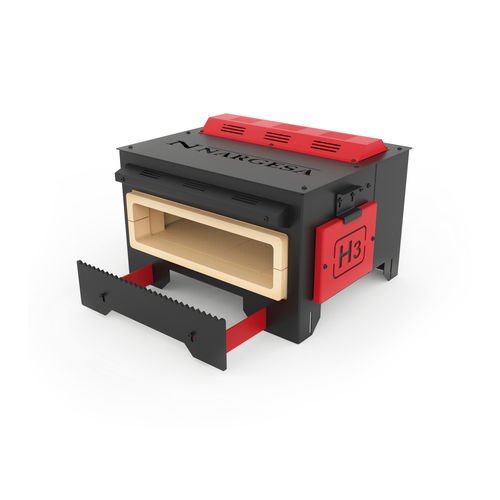

The NEW H3 Nargesa propane forging furnace has been designed to heat irons more efficiently, more safely and respecting the environment. MORE EFFICIENT: Consume up to 75% less gas and reach a higher temperature than any furnace in its category. (over than 1300ºC). SAFER: It has got new security systems for the operator. Fulfilling the regulation RD919/2006. Certified by the General Laboratory of Tests and Investigations: APPLUS Technology Center. 100% RESPECTFUL WITH THE ENVIRONMENT: Emissions below 0.002% of CO. Internal vermiculite coating, 100% natural and recyclable. TECHNICAL CHARACTERISTICS The Nargesa H3 propane oven has three burners. Possibility to place the material support in any of the three entries. Double insulation of compacted vermiculite, to avoid heat loss. Insulating flange in the material inlets to keep the heat inside the combustion chamber. The furnace is covered with heat painting to protect and prevent from heat loss. Air flow regulator to adjust this size to the different altitudes. Depending on the work place of the furnace and its altitude regarding the sea, the air flow for the mixture of gas and marine air will be regulated, the suitability for a good combustion. Reach temperature, 1300ºC. Adjustable pressure from 0.1 to 1.5 Bar. Maximum consumption at 1 bar of 1 Kg/h. With a LPG propane gas cylinder of 35Kg, the H3 Furnace will operate 35 hours with its two burners at full operation. If we only use one burner, then performance will triplicate. LPG Propane Gas Feed. Useful internal cavity of the H3 furnace: 464mm wide x 100mm high and 240mm deep. Maximum material capacity Ø 80mm.

VIDEO

Catalogs

Gas forge H3
Gas forge H3
13 Pages
Gas forge H2
Gas forge H2
13 Pages
Gas forge H1
Gas forge H1
13 Pages
