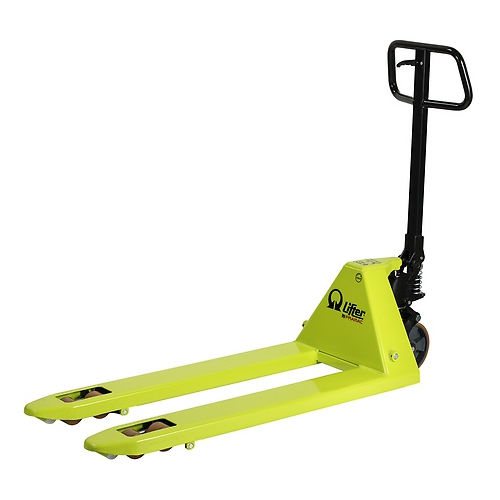

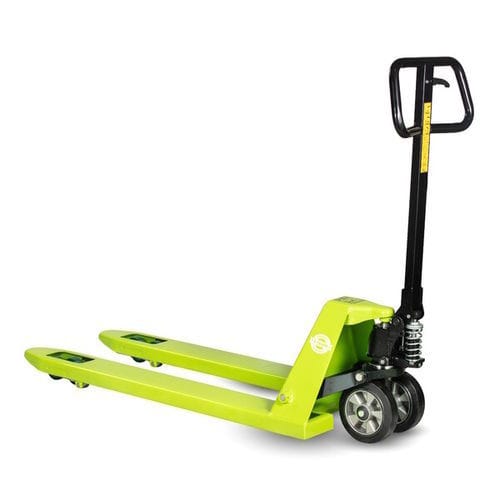

Hand pallet truck GS EVO series
with tilting forkhandling

Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling - image - 2
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling - image - 3
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling - image - 4
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling - image - 5
Hand pallet truck - GS EVO series - PRAMAC-LIFTER - with tilting fork / handling - image - 6
Add to favorites
Compare this product

Characteristics

Operation
hand
Other characteristics
handling, with tilting fork
Load

2,500 kg
(5,511.56 lb)

Lifting height

115 mm
(4.5 in)

Fork length

800 mm, 950 mm, 1,000 mm, 1,150 mm, 1,220 mm
(31.5 in, 37.4 in, 39.37 in, 45.28 in, 48.03 in)

Fork width

150 mm
(5.9 in)

Fork spacing

525 mm
(20.67 in)

Description

In addition to the GS25 features, the EVO model is designed with an ergonomic 3D tiller that assures the handling of heavier loads. Moreover, the hydraulic unit includes a sensitive and safe forks control system, while the forks are equipped with the entry/exit rollers to allow easier entrance and quicker exit from a closed pallet. The load rollers, like the directional wheels, are in non-marking polyurethane for safe and silent movement of goods. Material Handling - Pallet trucks What are the optional tools? It is also possible to add directional wheels in other materials (rubber, aluminium/polyurethane, nylon), quicklift, covered rudder and manually controlled brake to the traditional equipment. What does the EVO version offer? The EVO model is equipped with a handle with 3D grip which ensures an ergonomic grip reducing fatigue, it is designed for intensive use with maximum ease of use.
