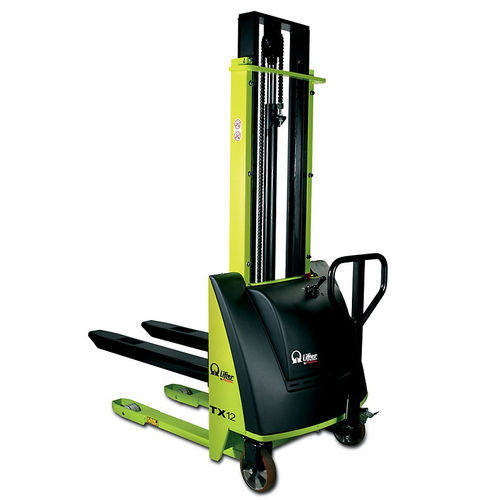

Manual stacker truck TX seriessemi-electricelectro-hydraulicwalk-behind
Add to favorites
Compare this product
Characteristics
- Energy
- semi-electric, electro-hydraulic, manual
- Operator
- walk-behind
- Applications
- handling, battery, traction
- Carrying capacity
1,000 kg, 1,200 kg
(2,204.6 lb, 2,645.5 lb)- Lifting height
Min.: 810 mm
(31.89 in)Max.: 3,410 mm
(134.25 in)- Free lift
80 mm, 810 mm, 1,510 mm, 1,910 mm
(3.1 in, 31.9 in, 59.4 in, 75.2 in)- Height of mast when lowered
Min.: 1,300 mm
(51.2 in)Max.: 2,370 mm
(93.3 in)- Overall width
750 mm, 850 mm
(29.5 in, 33.5 in)- Overall length
1,750 mm, 1,850 mm
(68.9 in, 72.8 in)- Fork width
100 mm, 150 mm
(3.9 in, 5.9 in)- Fork length
1,000 mm, 1,150 mm
(39.37 in, 45.28 in)- Fork spacing
560 mm
(22.05 in)- Turning circle radius
1,440 mm, 1,760 mm
(56.7 in, 69.3 in)
Description
The TX Series are characterized is a manual stacker with electrohydraulic lifting technology. Version 12 (1.2 t) includes polyurethane wheels as standard to reduce resistance and effort required even when loaded to capacity.
Material Handling - Stacker trucks
How much can a TX series trolley lift?
The TX series trolleys are characterized by manual traction and electro-hydraulic lifting, and thanks to their great stability they can also lift very high loads, up to 1.2 tonnes.
What is the ignition key in the product for?
The ignition key on the TX trolley has a dual function of turning the trolley on and off; but also the emergency function, completely interrupting the battery supply and therefore preventing the forks from lifting.
Catalogs
No catalogs are available for this product.
