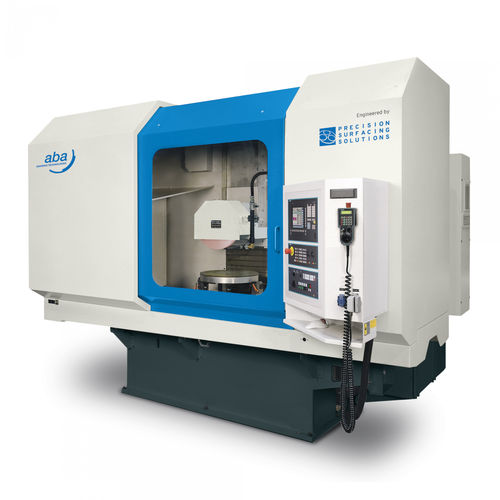

Creep feed grinding machine powerLinesurfaceCNChigh-precision
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Control type
- CNC
- Other characteristics
- high-precision, with moving table, creep feed, with linear motor, 3-axis
- Power
52 kW, 70 kW, 90 kW, 105 kW
(70.7 hp, 95.17 hp, 122.37 hp, 142.76 hp)- X travel
Max.: 3,000 mm
(118 in)Min.: 1,000 mm
(39 in)
Description
The powerLine technology machines are specifically geared towards creep-feed grinding applications. Their mono-base design allows grinding widths (Z-axis) of up to 700 mm with a maximum spindle power of 105 kW. The compact, steel base designed powerLine model is equipped with linear guides in all three axes. All three axes (X, Y, Z) are driven by servo motors via ball screws (KGT). The standard version of the multiLine comes with high-precision linear scales for positioning of the vertical axis. The direct drive of the grinding spindle from 48 kW guarantees optimal torque transfer. Different measuring devices and CD (continuous dressing) units are examples of a wide variety of available options making it easy to customize the powerLine to your individual requirements.
Catalogs
aba powerLine
2 Pages
