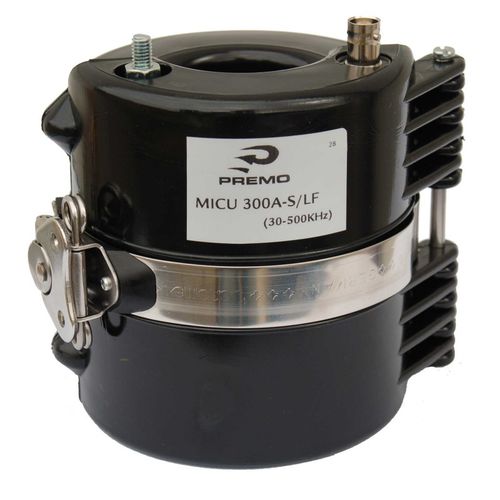

Inductive coupler MICU 300A-S/LF

compactIP65

High current solution made with high permeability high performance materials avoid saturation problems at high currents Low insertion losses 12dB±2dB (@100-250kHz) ; 5dB±2dB (@250-600kHz) More electrical safety: High insulation > 4.7 kV Compact equipment: BNC connector integrated in the coupler (other connections available under request) Water resistant (IP65) Customized for Maxim G3-PLC modems Optimum performance at 500kbit for PRIME PLC Smart grids SOLUTIONS. Compatible with Enverv PLC modem Chipsets Features: Nominal current: 300 A Rated Voltage: Only depends on the insulation level of the cable Rated AC withsand voltage: Only depends on the insulation level of the cable Rated lightning withstand voltage (1.2/50ï­s): Only depends on the insulation level of the cable Partial discharge level at 1.2 UN: Only depends on the insulation level of the cable Insulation resistance: Only depends on the insulation level of the cable Transmision frequency range and attenuation: -12dB±2dB @100 to 250 kHz-5dB±2dB @250 to 600 kHz Nominal impedance: Coupling side: 20 to 50 Ω / Equipment side: 50 Ω Average power in permanence: > +40 dBmW Harmonic distorsion and intermodulation: 4.7kV Working temperature: -20°C to 60°C Storage temperature: -40°C to 85°C Weight: <2.5 kg Climatic category: 25/100/21 according to IEC 60068-1 Safety isolation: According to IEC 60950 Normative: IEC 61869
