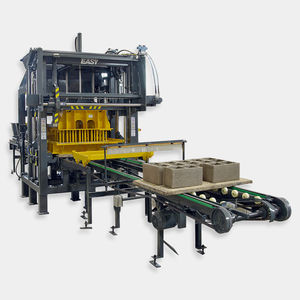

Concrete block making machine Vibrocompacta VMI

automatic

Concrete block machine with a fully automated production system for very high outputs. For the production of blocks, infill blocks, kerb stones, pavers and other precast concrete elements. In 8 hours shift it can produce approx. 28.000 blocks 20x20x40 cm. Production pallets: 1400x750 mm max, 1200x600 mm min. Manufacturing height: min 40 mm / max 350 mm. VMI 4 motor vibration system with electronic synchronisation of the masses. Vibrator strength: 0 a 23.000 daN. Max. frequency of the vibrator: 75 Hz. Total power of the press: 70,5 kW. Vibrating motors on the tamper head to improve the surface finish of the piece. Electrical adjustment of the product to be manufactured, without the need of tools. Hydraulic/pneumatic fastening of the mould. Concrete loader with beater and grid. iControl System. MAIN OPTIONS Equipment for facing concrete. Manufacturing on metal pallets. Automatic vibrator lubrication. Remote WIFI / 3G connection. Belt dosing.
