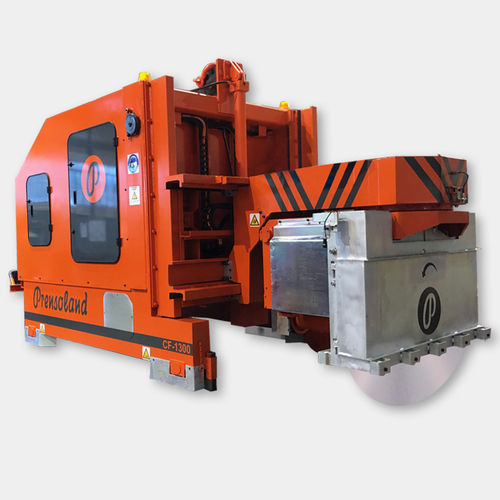

Concrete cutter CF-1300

Semi-autonomous saw, with a rotating head designed to crosscut as well as longitudinal or any angular of pre-stressed concrete elements (beams, lintels, hollow core slabs, solid slabs, other). by mean a diamond disk of maximum diameter 1300 mm for parts up to 500 mm. thick (higher thicknesses available). It mounts a 1.300 l. water tank or a 280l. with a water reel. The cut is fully automated, adjusting the speed and power of the blade continuously to maximise the cutting speed. Various safety devices come standard, blade lid protection, e-stops among others, safety is a priority on our machinery. Optionally you can add the autonomous feature, the machine will work autonomously, without operator's supervision, having Wi-Fi or 4G connection, you can send the cuts from any computer or mobile device directly to the cutting machine. Cutting machine to make the cuts of pre-stressed concrete parts by mean a diamond disk of maximum diameter 1300 mm for parts up to 500 mm. thick (higher thicknesses available). Rotating cutting head assembly enabling cross cuts as well as longitudinal or any angular. Self adjusted cutting speed. Maximum cutting thickness 500 mm. Other thicknesses available. Disk diameter from 800 to 1300 mm. Control panel with Programmable Logic Controller. Touchscreen display to enable the cut of the parts according to different programs. Winders for the electrical cable and the water hose. Auxiliary water tank with pressure unit. Disk driving asynchronous motor 55kW. Telescopic lid to protect the cutting disk during the automàtic positioning. Optional cutting sludge cleaning System. Optional pre-programmed cut along the casting bed.
