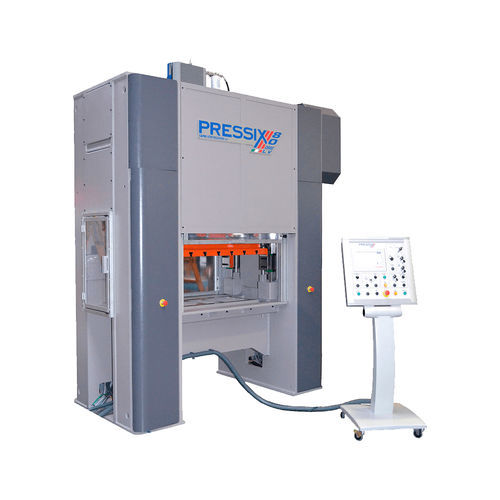

Hydraulic press 80 DM2LVmotorizedpneumaticforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized, pneumatic
- Function
- forming
- Structure
- straight-side, eccentric, roller, double connecting rod
- Control
- automatic
- Other characteristics
- fixed
- Force
800 kN
- Stroke
Max.: 350 mm
(13.78 in)Min.: 10 mm
(0.394 in)- Hydraulic pump power
16 kW
- Weight
10,000 kg
(22,046 lb)
Description
longitudinal eccentric shaft, slide with 4 linear guideways and 8 roller pads, automatic and centralized lubrication, hydraulic safety, pneumatic clutch-brake group, planetary gearbox, balancing cylinders, motorized slide adjustment.
Fixed stroke length included between the declared values.
RATED TONNAGE POINT - mm - 2.5
ENERGY AT NOMINAL SPEED - J - 4.700
NOMINAL SPEED - Spm - 80
VARIABLE SPEED - Spm - 30 - 280
BOLSTER AREA - mm - 1.000 x 700
SLIDE AREA - mm - 1.000 x 700
