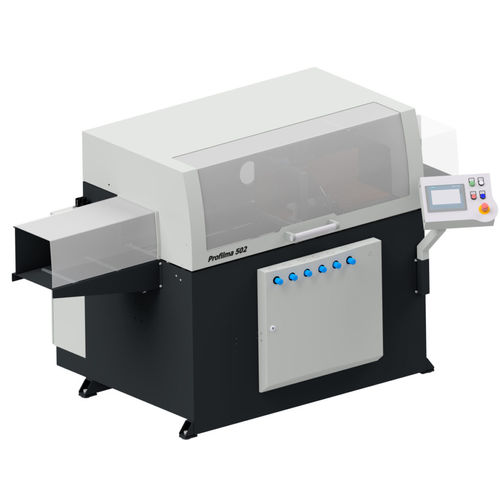

Circular sawing machine Profilma 502

for metalsfully-automaticprecision

• Fully automatic operation with graphic control elements. • 7.5 kW drive, 400V, 50 Hz. • For HM or PCD saw blades Ø550 mm, max. 2850 rpm. • Servo-controlled saw feed, vertically from below. • Material feed via servo-controlled ball screw drive. • Control Siemens S7 with 7 “touch display. • Cutting area 270 x 150 mm (W X H). • Remaining piece length from 75 mm (depending on profile). • Individually adjustable clamping pressures for horizontal and vertical clamps. • Front saw blades exchangeable from the operator side. • Siemens S7 control with touch panel. • Novel simplified user interface. • Input of chain dimensions and database functions possible. • Servo-controlled saw feed. • Cutting gap extension to improve the sawn surface. • The clamping pressure of the vertical and horizontal clamps can be adjusted separately. • Replacement of the saw blade from the operator side possible. • 800 mm material feed, through multiple reversing, section lengths of up to 3,000 – 4,000 mm are possible. • Lowerable roller reduces surface damage when reversing the feed.
