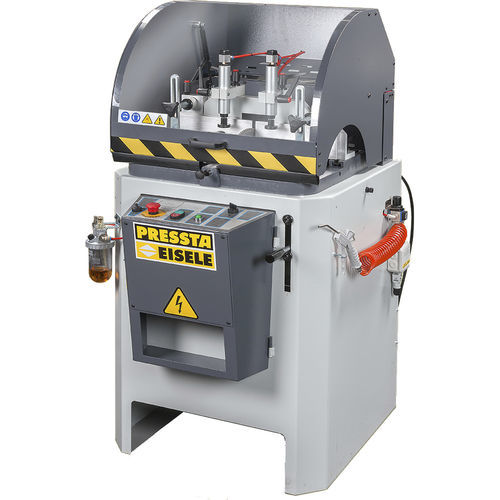

Miter saw GS 350M

verticalhorizontalfor plastics

• For sawing aluminum and plastic profiles. • Manual handling, saw cut from bottom to top. • Drive 2.2 KW, 400 V, 50 Hz. • Manual miter setting 30 ° – 90 ° – 0 ° with scale. • Air gun with spiral hose. • Manual protective hood (pneumatic option). • Pneumatic profile clamping, vertical with clamping cylinders. • 2 horizontal clamping cylinders (option). • Dosing spray device with a nozzle, use of spray oil. • Working height 965 mm. • 2 chip extraction nozzles Ø 100 mm. • Material cross stop can be moved 90 mm backwards. • Manual miter setting 30 ° – 90 ° – 0 ° with scale. • Screen dots at 45 ° – 90 ° – 45 °.
