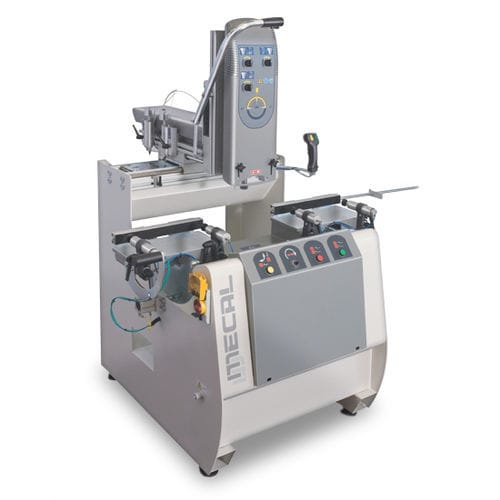

Vertical copy router FR830 EASY-TER

The piece that is held by pneumatic vices which are mounted on a rotatable carrier, can be steplessly moved through a pneumatic control between -90 ° and + 90 °. • Variable speed of the spindle by means of frequency converter. • Pneumatic clamping of the spindle to the selected height. • Easy tool change through self-releasing systems. • Copy work in a ratio of 1: 1. • Milling according to the stop or template. • Vertical milling area 290 × 185 mm. • Vertical stroke 200 mm. • Clamping area of the profiles 170 × 135 mm. • Speed of the rotating tool (blade speed) 2800-12000 rpm. • Electrical frequency 50 Hz. • Motor power 1.1 kW. • Power supply (voltage) 230-400 ± 5% V. • Compressed air connection 7 bar. • Height of the machine ± 1800 mm. • Width of the machine ± 1160 mm. • Length of the machine (total length) ± 1300 mm. • Machine weight ± 260 kg.
