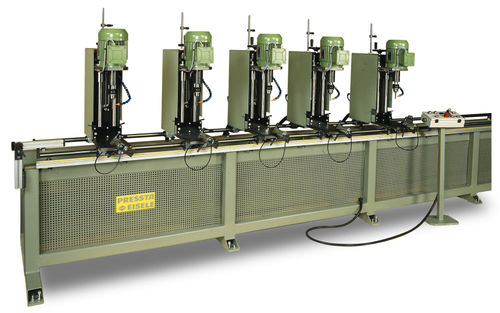

CNC drilling machine Expert

horizontalfor profilesmulti-spindle

• Base 3000 mm, with hardened guides in x-direction, 3.000 – 8.000 mm • Electric device – operation via 2-hand safety control, setting mode to adjust drilling depth – key switch • Drilling units with stand and linear guides in X-direction, shafts for manual adjustment of drilling height, working range 125 mm (drill to back wall), Positioning in X and Y direction by scale, Profile height max. 200 mm • Either toothed drill chucks or multy spindle heads available • Drilling units, motor 1,5 KW, 400 V, 50 Hz, 3000 r.p.m., pneumatic down feed max. 200 mm, hydraulic damped • Drilling performance up to Ø 16 mm • Zero-stop for X-direction mounted on left side of machine, adjustable 0 – 100 mm • Table with pneumatic horizontal profile clamps
