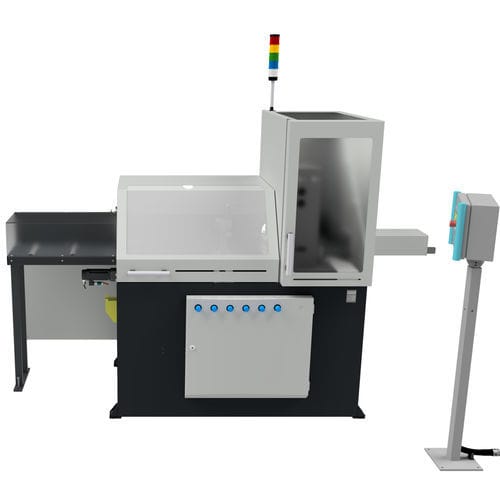

Saw punching and cutting machine Profilma 502ST

automatichydraulicfor aluminum profiles

• For cutting to length and punching aluminum profiles. • Fully automatic operation with graphic controls. • Drive 7,5 kW, S6, 400 V, 50 Hz, 2850 rpm. • For use of saw blades Ø 500 or 550 mm. • Siemens S7 control with touch display incl. piece counter • incl. reversing device up to a cut-off length max. 1,5 m • Re-gripping from material feed after sawing or during the sawing process • Regripping from material feed – entire area (800 mm) or short area • Motorized saw blade feed, infinitely variable, from bottom to top • Vertical and horizontal clamping device, on the infeed and outfeed side of the saw head • Cutting gap extension on both sides of the saw blade • Electronic material feed unit with ball screw and servo motor, including pneumatic horizontal and vertical clamping device, • The profile support area in the area of the feed is equipped with a lifting/lowering roller • Rest piece from 75 mm • Clamping pressure reduction horizontal and vertical • Cycle testing device with level monitoring and automatic shut-off, • Noise protection package • On the section side there is a hydraulic punching device, drive hydraulic, incl. oil cooler. • One cylinder vertically from the top, punching stroke max. 20 mm, adjustable downwards via a knurled screw • One punching cylinder horizontally from the front, punching stroke 20 mm • Punching force 150 KN per cylinder • Cylinders can be selected / deselected via the control system
