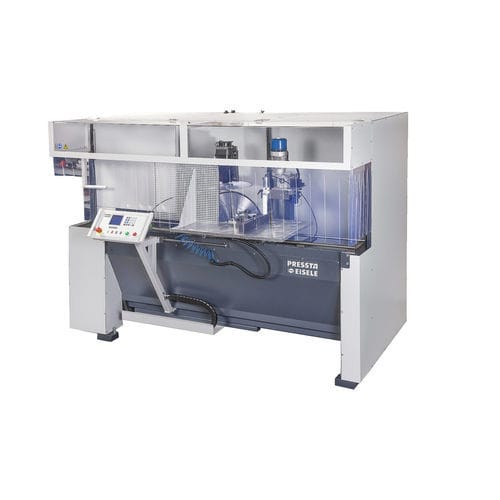

Variable-angle notching machine Prisma 65 series

electricautomatic

Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs. Notch variation: rectangle, one sided angular, two sided angular, 3 sided angular. Processing features: The Prisma 650 is able to process standard profiles. Notch dimensions: 210mm horizontal, 262 mm vertical (90°) Profile dimensions: height maximum 320mm, width maximum 280mm 4-axis adjustment of saw blades positioning via electronic control panel Notch height Swivel vertical blade Swivel vertical and horizontal blade together Material depth stop Power adjusted notch height – positioning via control panel 0 – 260 mm Power adjusted pivoting range saw blade vertical 90° – 60° + 30° (to front/to back) Power adjusted pivoting range horizontal + vertical saw blade 90° + 45° – 45° Pivoting range material fence on table manually left/right 30° – 90° – 45°, positioning by scale The Prisma 652 has an additional feature compared to its predecessor: The horizontal saw blade can be adjusted forward pneumatically by up to 40mm, which allows to not only cut the notch, but in addition to cut an overlapping notch with a groove for the weather seal, which is freely adjustable from 0 to 40mm depth. The actual depth can be checked with a mechanically measured digital display and is operated through an switch.
