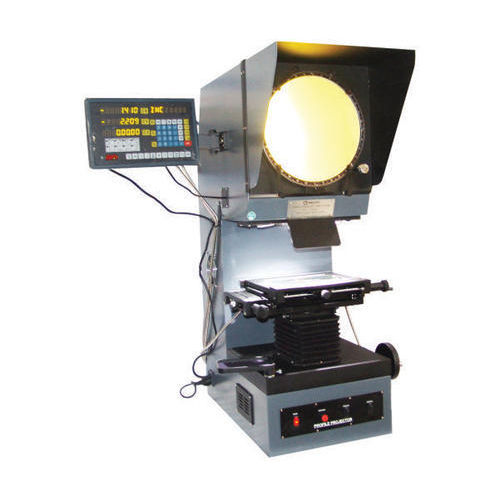

Tabletop profile projector PPPD-0116-DRO

large screendigital

Cost effective solution for Digital linear & angular Measurements with built-in DRO. Features: • Compact light weight Table Top model with easy operations. • 300mm diameter screen with 90° cross line and chart holders. • Screen is graduated to 360° with vernier reading 1 minutes. • Projection Light Source with 24V/150W Halogen Lamp. • Double Obligue Light Source for Surface Illumination. • Two adjustable dichromic reflector lamps 12V/100W each. • Focusing can be adjusted manually by hand wheel. • High Quality objective lenses. • Optical distortion below 0.15%. • Standard magnifications : 10x Specifications: • Table type & size- AL 300 x 200 mm • Effective table area- 275 x 180 mm • X-Y range- 200 x 100 mm • Resolution- 0.001 mm • Screen Size- 300 mm • View Field Diameter- 30 mm • Working distance- 65 mm
