Burst tester PBP – 600

performancefor filmfor fabric

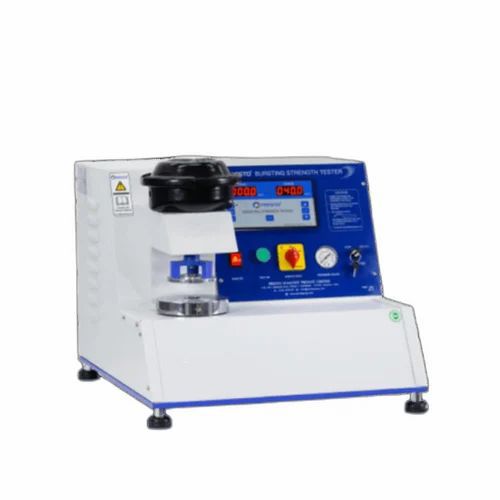

Bursting Strength Tester - Digital Pneumatic cum Computerized is a consistent tool to indicate the Strength and performance of material like Rexene, leather, paper boards, paper, uneven boards and boxes, industrial fabric and solid fiber boards, filter cloth, plastic films, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTM D 3786 - 80A, ISO 1060 PART-1 1987. Features Single Push Button Operation Auto Sample locking under selectable pressure range Microprocessor based display for accurate test results Peak Hold facility for keeping maximum value of test result in memory Memory to hold up to 9 test reading Highly accurate test results under multidirectional Pneumatic Force Strong Gripping clamps Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen under test Bright LED display Graph test report is Pressure Vs Time 10 Sample test reports can be seen on one report Email facility of report Data can be tabulated in excel format Specification: Capacity-40 kg/cm Display- LED (Digital) Graphical Specimen Clamping- Pneumatic 2- 5 Bar pressure Accuracy- 1% within 10% t o 90% of entire range as per IS: 1828 with master gauge Least Count/Resolution- 0.1Kg/cm2 Pressure Sensor- Pressure Transducer Power- 220V, Single phase, 50 Hz Test fluid- Glycerin about 98% purified(lab grade) Rate of fluid displacement- 95 cc/minute Motor- 1/4 HP Single Phase , 1440 rpm Test Range- 1Kg/cm to 38Kg/cm
