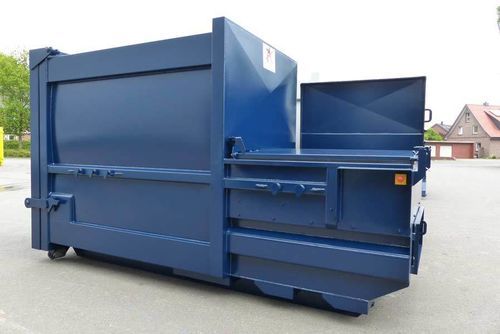

Mixed waste compactor H series

waste recyclingmobilemonobloc

Overview
PRESTO mobile compactors are single-unit systems integrated with a compaction container, designed to process large volumes of recyclables, residual waste and commercial waste streams. Compaction is performed by a horizontal plate driven by an electro-hydraulic system. The unit is suitable for skip-lift (absetzer) container handling.

Key features

• Single-unit design fixed to the compaction container
• Horizontal compaction plate with electro-hydraulic drive
• Very low filling opening to simplify manual or mechanical loading
• High compaction ratio while allowing straightforward discharge
• Available types for skip-lift containers (HAN R, HA R)

Application / Selection guidance
Choose the exact type based on material dimensions, required throughput and the available disposal vehicle. PRESTO HAN R and HA R are engineered for skip-lift handling and are typically offered in smaller container volumes (approx. 8–12 m³) compared with roll-on/roll-off variants. Ensure electrical supply and access for container handling are compatible with site operations.

Product variants and documentation

• Available variants: HAN R, HA R (and related HG / HGS variants)
• Documentation: product brochures, dimension sheets (HAN-R, HA-R, HG-R, HGS-R)
• Optional configurations: hydraulic lid, unwinders or wall-connection hopper on selected variants

Technical specifications

• Compaction method: horizontal compaction plate
• Drive: electro-hydraulic
• Design: single unit integrated with compaction container
• Filling opening: very low for easy loading
• Intended materials: recyclables, residual waste, commercial waste similar to household waste
• Container types: skip-lift containers (HAN R, HA R)
• Typical volumes: approx. 8–12 m³ for skip-lift variants (depending on model)
