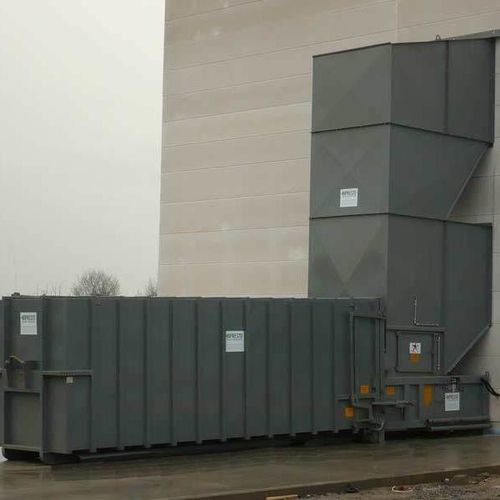

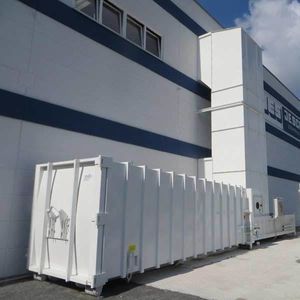

Mixed waste compactor RHD

waste recyclingstationaryhydraulic

Overview
The PRESTO RHD is developed for demanding industrial applications. It is intended for stationary compaction of large volumes where installation space is limited and for integration into production lines. The short version is designed for limited-space installations and compatibility with pneumatic conveying and wall-mounted hoppers.

Application SAN
The PRESTO SAN series is suitable for residual waste and recyclable materials from retail and logistics operations. SAN models support efficient container exchange workflows adapted to external collection and vehicle loading.

Construction & options
The compactor discharges into a container closed by a standard tarpaulin; optional closing hood and closing pipes are available. A large feeding opening combined with a scissors-layout hydraulic cylinder reduces overall installation footprint. Interfaces for conveyors, balancers and pneumatic feeding systems are provided for process integration.

Documents & media

• Brochure RHD
• Brochure SAN
• Dimension sheet RHD
• Dimension sheet SAN
• Dimension sheet containers MB-K / MB-U / MB-R
• Movie: static compactor short version

Technical specifications

• Designed for demanding industrial applications (RHD)
• Short/compact version for installations with limited space
• Compatible with pneumatic systems and wall-mounted hoppers (printing industry applications)
• SAN: for residual waste and recycling in retail and logistics
• Container closure: tarpaulin standard; optional hood and closing pipes
• Large feed opening with space-saving scissors-layout hydraulic cylinders
• Compatible container types: MB30, MB30R, MB-K, MB-U, MB-R
