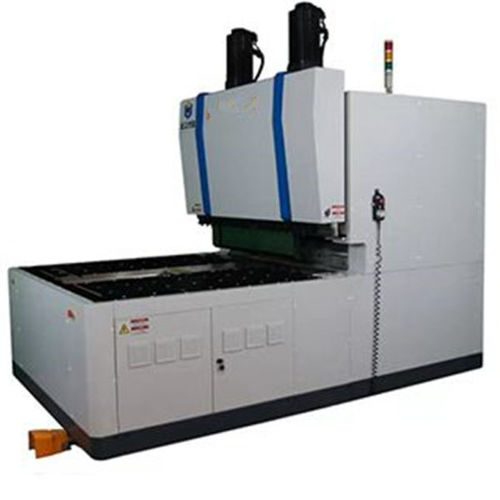

Sheet metal folding machine PRIMA1400

sheet metal folding machine
sheet metal folding machine
sheet metal folding machine
Add to favorites
Compare this product


sheet metal
Other characteristics
automatic, precision
Folding length

1,400 mm (55.1 in)


sheet metal Automatic Fold Machine automatic folding machine Auto folder machine Video in youtube: Product Overview PRIMA1400 uses a servo motor direct drive main drive, which abandons the bending method of the hydraulic station as the power source. It has remarkable characteristics and powerful functions. It has high efficiency, energy saving, noise reduction, high precision and other functions, which can achieve multilateral one-time bending Various processes such as arc forming. The size of the processed plate is 1400x1400mm, which controls 9 axes of U, Y, C, X1, X2, W1, W2, Z1, Z2 2, 2. Main technical parameters No. Technical Parameter Unit Bending Center Model PRIMA1400 2 Maximum plate length mm 1400 3 Maximum sheet width mm 1400 4 Maximum bending height mm 170 5 Minimum molding size of four sides mm 400 * 250 6 The minimum forming size of one side mm 160 7 Minimum arc radius mm 1.2 8 Minimum continuous bending speed S 0.5 9 Bending angle degree 0-180 10 Number of control axes 9 11 Maximum feeding speed m / min 30 12 Equipment size mm 3700 * 3000 * 2750 13 Equipment weight T 13 16 Workbench structure / brush and universal ball Bending plate thickness range Material properties Maximum thickness (mm) Stainless steel (SS) 1.2mm Carbon Steel (MS) 2mm Aluminum plate (AL) 2.5mm
