Servo-electric press brake BCe series

CNCsemi-automatichigh-performance

Overview

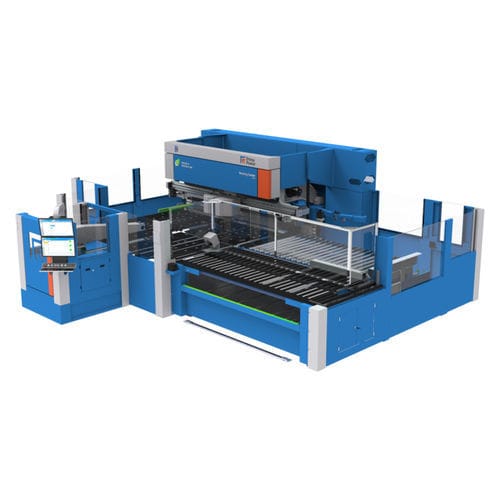

The BCe bending centre from Prima Power is designed for single parts, small batches and mass production. Combining the benefits of the Express Bender with a semi-automatic, high-productivity workflow, the machine remains in production thanks to the LUT loading/unloading table that enables masked loading and unloading.

Key features

• PRECISE: Superior bending accuracy provided by the angle correction database and servo-electric drive technology.
• PRODUCTIVE: LUT table lets operators load the next part while the machine processes the current sheet, reducing idle time.
• FLEXIBLE: Manual loading combined with LUT handling supports single parts, kits and variable batch sizes.
• EASY: 3D programming with integrated simulation of the bending cycle simplifies setup and verification.

Technical data / Specifications

• Models: BCe2220, BCe2226, BCe2720, BCe2726
• Maximum bending length: BCe2220 / BCe2226 = 2,250 mm; BCe2720 / BCe2726 = 2,750 mm
• Maximum sheet length: 2,850 mm (all models)
• Maximum sheet width: 1,500 mm (all models)
• Maximum panel diagonal: 3,000 mm (all models)
• Maximum bend height: 204 mm (models ending with 20); 264 mm (models ending with 26)
• Maximum re-entering bend: 55 mm (all models)
• Bending force: BCe22 series = 32 t (320 kN); BCe27 series = 41 t (410 kN)
• Clamping force: BCe22 series = 52 t (510 kN); BCe27 series = 90 t (890 kN)
• Max. thickness, Steel UTS 410 N/mm²: BCe22 = 3.0 mm; BCe27 = 3.2 mm
• Max. thickness, Stainless steel UTS 680 N/mm²: BCe22 = 2.0 mm; BCe27 = 2.2 mm
• Max. thickness, Aluminium UTS 265 N/mm²: 4.0 mm (all models)
• Minimum thickness: 0.5 mm (all models)
• Average absorbed power: 6.5 kWh (all models)
• Notes: Values refer to the standard machine. Prima Power reserves the right to change data without notice.
