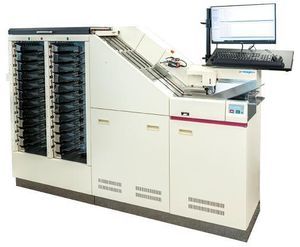

High-speed scanner sorter ImageValue 20P series

OCRMICRbarcode

Overview

The ImageValue 20P Series is a high-speed, high-resolution printing, marking and document scanning-sorting system designed for heavy-volume mixed-form processing and digital transformation projects. As a core component of industrial document processing infrastructure, its open-track air vacuum transport combined with in-house LED illumination and high-speed cameras ensures high image quality, improved OCR rates and gentle handling across varied paper types and sizes.

Key highlights

• Ultra-high throughput: up to 600 sheets per minute (A4 short-edge feed equivalent) depending on model and settings.
• Open-track air vacuum transport: minimizes contact to reduce damage and soiling while enabling mixed-size/media processing.
• High-precision in-house image system: bright LED illumination and high-speed R,G,B CCD cameras for superior OCR results (optical resolution up to 300 DPI; selectable output up to 600 DPI).

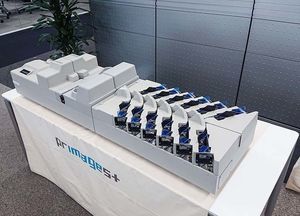

• Flexible sorter configurations: single-pocket scanner or multi-pocket sorter options from 1 to 48 classification pockets to match operational needs.
• Operational efficiency: large hopper capacity, automatic/hand feeding with ultrasonic double-feed detection, automatic de-skew and gap control feeder option.

Typical Applications and Use Cases

The ImageValue 20P Series is trusted across a wide range of industries where high-volume, high-accuracy document processing is critical:

• Banking and financial services: High-throughput scanning and sorting of tax payment slips, bank transfer forms, deposit/withdrawal vouchers, and mixed back-office documents. Supports centralised administrative processing centres handling multi-branch consolidated workflows, including inter-bank BPO arrangements in non-competitive operational areas.
• Insurance: High-volume scanning of policy applications, claim forms, and customer correspondence as part of image workflow (IWF) and BPO operations — enabling efficient routing, AI-assisted classification, and disaster-resilient processing.
• Public services and local government: Rapid scanning and classification of tax payment notices and municipal revenue documents. Supports high-speed capture for local tax bureaus and government administrative centres processing large seasonal document volumes.
• Education and examination bodies: Accurate, high-speed processing of standardised test answer sheets and evaluation forms. Deployed in national-level scholastic ability assessment systems requiring objective, rapid and reliable scanning at scale.
• Retail and logistics: Sorting and digitalisation of shipping labels, delivery slips, and mixed commercial documents in distribution and logistics back-office operations.

Available options & special functions

• Inkjet numbering/printing: pre-image, post-image front and back printing with multiple ink types and capacity modules.
• MICR reader (E-13B/CMC7) for magnetic character recognition.
• Barcode/QR recognition: software real-time decoding and specialized hardware for stealth detection.
• Stealth printing (invisible ink) with recognition capabilities.
• Coderec: real-time alphanumeric character recognition.
• ScanPlus: real-time image quality checking and unusable-image detection (soiled, torn corners, etc.).
• Classification pocket configurations: 1–48 pockets (model-dependent) for sorting and load distribution.
• Custom support: sealed-letter/envelope handling and address-window film QR-code recognition.

Technical specifications

• Commercial name: ImageValue 20P Series
• Single-pocket scanner models: IV20P/300, IV20P/450, IV20P/600
• Maximum processing speed (A4, 3-inch interval): IV20P/300 = 300 DPM (200 DPI) or 300 DPM (300 DPI); IV20P/450 = 450 DPM (200 DPI) or 300 DPM (300 DPI); IV20P/600 = 600 DPM (200 DPI) or 300 DPM (300 DPI).
• Transport mechanism: open-track air vacuum method for varied-size documents.
• Feed functions: auto and hand feeder with 3 ultrasonic double-feed detectors, automatic de-skew with skew sensors.
• Feedable document size: Min 83 × 64 mm — Max 297 × 420 mm (A3).
• Paper weight/thickness: approx. 40.7 g/m² up to 209.4 g/m² (speed-dependent limits may apply).
• Supported media: OCR paper, high-quality plain paper, recycled paper, pressure-sensitive paper (testing recommended for some media).
• Front image camera: ultra-high-speed 300 DPI R,G,B 24-bit CCD; high-speed camera option for greater DPI at speed (36-bit, higher tone depth).
• Output resolution/formats: 150–600 DPI (JPEG 24-bit color, Gray JPEG 8-bit, B/W Binary TIFF; optional JPEG2000).
• Light source: high-efficiency super-luminosity LED.
• Image functions: auto cropping, auto de-skew, color dropout, RGB conversion, auto brightness control, snippet handling.
• Hopper capacity: 1500 sheets (additional hopper options for non-stop processing).
• Pocket configurations: single-pocket (1 pocket, 1000-sheet capacity) or multi-pocket sorter (3–48 pockets; SS:1,000 / MS:500 sheet capacities; reject pocket: 100 sheets).
• Control PC OS: Windows 10 IoT Enterprise LTSC (1809).
• Interface: TCP/IP 1 Gbps or faster; TWAIN driver available.
• Dimensions (base single-pocket): 2,275 × 820 × 1,370 mm (W × D × H).
• Weight (base single-pocket): 267 kg (multi-pocket configurations heavier; e.g., ~545 kg for a 6-pocket sorter example).
• Power (50/60 Hz): Single phase 100–240 V / 30 A (multi-pocket power depends on pocket count; 25–48 may require additional circuits).
• Operating environment: 16–26 °C; relative humidity 40–60%.
• Certifications/standards: nipa / KC / CE / cULus.
