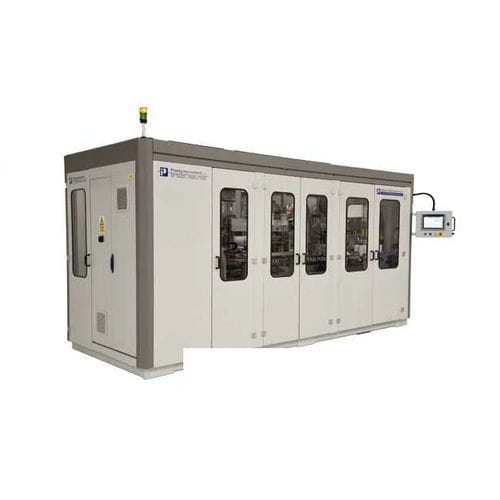

Pad printing machine with closed ink cup ORION

automaticfor the packaging industryfor the printing industry

The Orion is a fully customizable pad printing machine for every industry. Because more positions (4-16) are available, more manufacturing processes can be incorporated in the machine. As such it cannot be seen as merely a pad printing machine. From assembly to packaging, everything is possible. •All-in-one machine: assembly – printing – packaging POSSIBLE PROCESS FEATURES HMI remote position Automatic feeding: hopper, vibrating bowl, linear vibration, rotary table. Product handling: jig, vacuum, … Assembly Pre-treatment: hot/cold air, plasma, flame, corona, UV, ionisation. Pad printing Automatic pad cleaning Post-treatment: IR, NIR, hot air. Camera inspection: print, assembly, orientation, tray full/empty. Rejection: individual, batch, product samples. Reporting: machine KPI, batch sampling. Product transport: rotary table, LTS shuttle, linear shuttle, belt driven indexer. MACHINE SETUP ROTA The ROTA setup is used when the number of working stations is limited and it is important to have good accessibility to all parts of the machine. By placing the working stations outside of the product trajectory each module can easily be reached by hand during production. LINO The LINO setup is used to maximize the number of working stations. By placing it in a line it is possible to add feature after feature. This setup also allows great accessibility from all sides. RING The RING setup is used when production space is limited and machine design needs to be as compact as possible. By placing all working stations inside the product trajectory we save a lot of space, but it also makes it harder to access certain parts during production.
