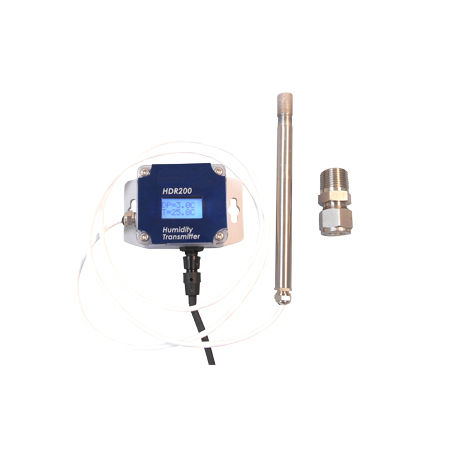

Capacitive dew-point transmitter HD/HR - 200

G 1/24-20 mA2-wire

Product
HD/HR - 200: moisture and dewpoint transmitter with capacitive sensing and 4–20 mA (2‑wire) output.

Overview
The HD/HR - 200 measures dewpoint (°C) and relative moisture (% rH) in gases. It supports gas temperatures up to 200 °C, a maximum operating pressure of 10 bar and is powered from a 12–28 V supply. The unit includes a 2-line LCD for TP/T readout and an IP65 enclosure for industrial installations.

Key information (from product tables)

• Parameters: Dewpoint (°C), Moisture (% rH)
• Method: Capacitive
• Range: Dewpoint -60 °C to +40 °C TP; 0–100 % rH
• Accuracy: ±1 % FSD
• Resolution: Analog, range-dependent
• Flow rate: 2–5 L/min
• Pressure: 10 bar
• Calibration: Dew point mirror
• Response time T90: not specified
• Gas temperature: up to 200 °C
• Output: 4–20 mA (2‑wire)
• Supply voltage: 12–28 V
• Display: 2-line LCD (TP/T)
• Protection class: IP65
• Connection: ½”
• Dimensions: 10 cm
• Weight: 0.3 kg

Documentation
Product datasheet available.

Technical specifications

• Parameters: Dewpoint °C; Moisture %
• Method: Capacitive
• Range: -60 °C – +40 °C TP; 0 – 100 % rH
• Accuracy: ±1 % FSD
• Resolution: Analog depending on measuring range
• Flow rate: 2 – 5 L/min
• Pressure: 10 bar
• Calibration: Dew point mirror
• Response time T90: not specified
• Gas temperature: up to 200 °C
• Output: 4 – 20 mA (2‑Wire)
• Supply Voltage: 12 – 28 V
• Display: LCD 2-line TP/T
• Protection Class: IP65
• Connection: ½”
• Dimensions: 10 cm
• Weight: 0.3 kg
