Electrochemical trace oxygen O2 sensor OxyDew

RS-2324-20 mAlong-life

Product description

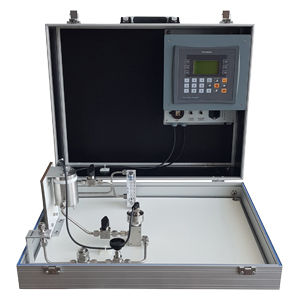

This transport case is designed for fast, accurate trace oxygen and dew point analysis. The instrument measures dew points from -100°C to +20°C and oxygen from 0–10,000 ppm simultaneously. Simple menu navigation, a membrane keypad and a large LED display enable quick commissioning. An aluminium transport case protects the instruments during transport.

Features
A user-programmable measuring range: the user has a measuring range of 0–10,000 ppm for oxygen and -100°C to +20°C for dew point, freely programmable. Available data outputs and data logger: 4–20 mA DC outputs for oxygen concentration and dew point are provided via plug connections. An RS-232 interface is available for the data logger; up to 10,000 values can be stored at adjustable intervals. Long-life sensor: the Oxymaster uses a special fuel cell to measure trace oxygen in the sample gas. For dew point measurement an aluminium oxide (Al2O3) sensor is used, which is very low-maintenance. Calibration: calibration of the instrument for the trace range should be performed using a calibration gas, which can be chosen freely within the measuring range. Customer requirements: the internal tubing of the case can be adapted to your specifications and operating conditions.

Advantages

• Compact, economical instrument in split configuration (sensor separated from electronics)
• Long-life sensor
• No range switching required
• Error messages displayed in clear text on the display (e.g.: calibration not OK, replace cell)

Cell housing

• Cell housings are modular and made of stainless steel
• If a cell block is defective it does not need to be replaced as a whole

Applications

• Semiconductor industry
• Gas manufacturers
• Metal industry
• Chemical industry

Technical overview
Parameters: oxygen ppm / dew point °C
Method: electrochemical / Al2O3 (crystalline)
Measuring range: 0–10,000 ppm; 0–10 ppm; freely programmable
Measurement uncertainty: +/- 2 % FSD
Response time T90: 0–10 ppm 60 s
Analog outputs / interfaces: 4–20 mA; RS232; data logger (up to 10,000 values)
Supply voltage: 85–230 V

Technical characteristics / specifications

• Resolution: 0.1 ppm / 0.1 °C
• Flow rate: approx. 1 l/min
• Pressure: 0.1 – 1 bar
• Calibration: calibration gas (recommended for trace range)
• Sample gas temperature: 0 – 50 °C
• Display: graphic display (full-text capable, trend display, temperature indication)
• Protection class: IP 65
• Connection: 6 mm
• Housing (dimensions): 220 x 190 x 190 mm
• Weight: 5 Kg
• Standard features: interchangeable sensors; user-programmable measuring range; signal outputs 4–20 mA for O2 and dew point; self-diagnostics; 316 SS stainless steel cell block; clear-text error display; universal power supply 85–230 VAC (50–60 Hz) and 24 VDC / approx. 50 W
