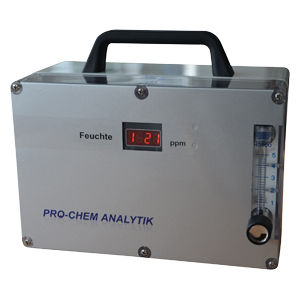

Compact dew-point meter DewP

portablewith data loggerwith external sensor

Product Overview
The DewP is a portable dew-point analyzer designed for fast, accurate and economical trace-level humidity measurement in gases. Intuitive operation and a large LCD make setup and field use straightforward. Measurement display selectable as dew point (°C) or moisture (ppmv).

Key Parameters / Summary Table
Parameters: Dewpoint °C; Moisture ppmv
Method: Capacitive sensor
ATEX: No
SIL: No
Range: -100°C – +20°C Dewpoint
Accuracy: ±2°C
Response time T90: +20°C to -60°C = 60 s
Output: 4–20 mA; Datalogger (optional)
Supply Voltage: 85–230 V AC; rechargeable battery

Description
Measuring range
The instrument provides a selectable measuring range from -100°C to +20°C dew point; other ranges available on request.

Data outputs
Standard 4–20 mA analog output for moisture; optional internal datalogger for recording up to specified cycles.

Sensor with long operating life
The LDT capacitive sensor uses advanced nano-pure technology to ensure stable long-term performance with low maintenance.

Calibration
Calibration for trace humidity measurements should be performed using calibration gas and a suitable reference device (dew-point mirror recommended for field verification).

Benefits

• Portable, compact design for field use
• Long-life sensor technology
• No range switching required within the specified span
• Optional gas sampling pump or flow meter
• Rechargeable battery for mains-independent operation

Flow-through measuring cell in Stainless Steel

• Modular stainless steel (SS316) measuring cell for corrosion resistance
• Replaceable modules allow repair of a defective part without replacing the entire cell

Standard Features

• Multiple sensor options available
• Output signal: 4–20 mA for dew point/moisture
• Optional data tracking / datalogger
• SS316 measuring cell
• Universal power supply 85–230 VAC 50–60 Hz
• Battery powered for portable operation

Application Areas

• Semiconductor industry
• Gas manufacturers and suppliers
• Metallurgical processes
• Chemical industry

Technical specifications

• Parameters: Dewpoint °C; Moisture ppmv
• Method: Capacitive
• Range: -100°C – +20°C Dewpoint
• ATEX: No
• SIL: No
• Accuracy: ±2°C
• Resolution: analog proportional to range
• Response time T90: +20°C to -60°C = 60 s
• Flow rate: 2–5 L/min
• Pressure: 0.1–1 bar
• Calibration: Dew-point mirror / calibration gas
• Gas temperature: 0–50 °C
• Output: 4–20 mA; datalogger (optional)
• Supply Voltage: 85–230 V AC; rechargeable battery
• Display: LCD 6 digits; bargraph
• Protection class: IP65
• Connection: 6 mm
• Dimensions: 240 x 160 x 130 mm
• Weight: 2 kg
