Wall-mounted dew-point meter DewTrans

compactinsertion typechilled mirror

Description
The DewTrans is a high-accuracy, low-cost dew point mirror hygrometer that delivers fast and precise measurements of humidity, dew point, ambient pressure and temperature. It is available as a compact unit or with remote electronics to enable flexible installation. Display and analog outputs (RH, DP or temperature) are user-configurable. The instrument provides stable, repeatable measurements traceable to recognized calibration methods.

User-specific configuration

• Device types: wall mounting
• Pipe mounting
• Sample chamber
• Electronics with remote sensor

Options

• Barometric pressure sensor
• Sample chamber
• Separate temperature sensor
• Higher accuracy option ±0.1 °C

Sensor

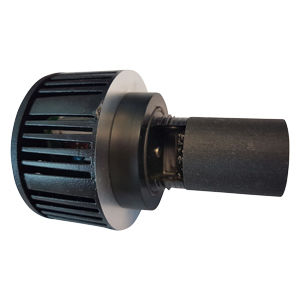

The DewTrans uses a wear-free, low-maintenance dew point mirror suitable for most harsh environments. Only minimal maintenance such as mirror cleaning is required to maintain accuracy.

Installation

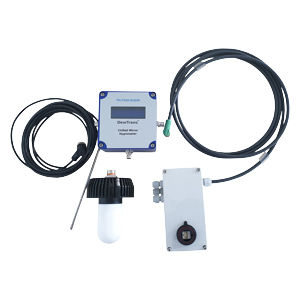

The transmitter is supplied as a compact or remote version. Remote electronics permit flexible installation; in the compact version the electronics and sensor can be disconnected by a plug for service or remote placement.

Parameters / Overview (table)
Parameters: Moisture %, Temperature °C, Dewpoint °C
Method: Dew Point Mirror 2-stage
Range: -40°C – +60°C TP; -20°C – +40°C; 0% – 95% rH
Accuracy: ±0.2°C (option ±0.1°C)
Resolution: 0.05 °C
Response time T90: 1°C / sec
Flow rate: 1 – 5 l/min
Pressure rating: 10 bar
Calibration: Dew Point Mirror
Gas temperature (max): 100 °C
Output: 2x 4 – 20 mA; RS232; Alarm
Supply Voltage: 24 V
Display: LCD 2-rows TP/T
Protection Class: IP65
Connection: G 1 ¾”
Dimensions: 60 x 150 (mm)
Weight: 1.4 Kg

Standard Features

• Compact design
• Cost-effective solution
• Direct dew point measurement method
• Display of DP, RH, Temp
• Switchable units: °C, K, vppm…
• RS232 interface
• Long-life sensor
• Accuracy: 0.2 K (option 0.1 K)
• Optional separation of sensor and electronics

Application Areas

• Semiconductor industry
• Gas production and processing
• Metal industry
• Chemical industry
• Pharmaceutical industry
• Heat treatment processes
• Glovebox and controlled-atmosphere enclosures

Characteristics / Technical specifications

• Parameters: Moisture %, Temperature °C, Dewpoint °C
• Method: Dew Point Mirror, 2-stage
• Range: -40°C – +60°C TP; -20°C – +40°C; 0% – 95% rH
• Accuracy: ±0.2°C (option ±0.1°C)
• Resolution: 0.05 °C
• Response time T90: 1°C / sec
• Flow rate: 1 – 5 l/min
• Pressure: up to 10 bar
• Calibration: Dew Point Mirror
• Gas temperature (max): 100 °C
• Output signals: 2x 4 – 20 mA, RS232, Alarm
• Supply Voltage: 24 V
• Display: LCD 2-rows TP/T
• Protection Class: IP65
• Connection: G 1 ¾”
• Dimensions: 60 x 150 (mm)
• Weight: 1.4 Kg
• ATEX: No
• SIL: No
