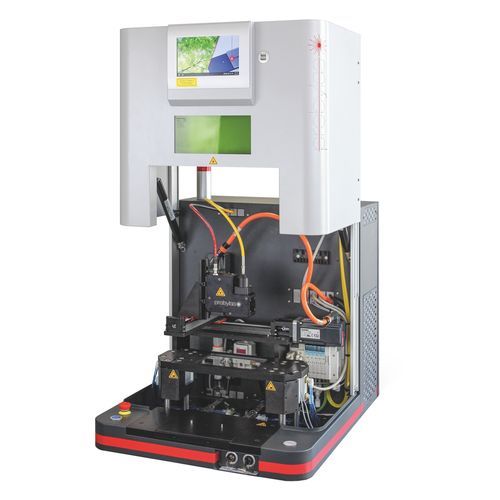

Plastic welding machine TURNKEY S

laserPLC-controlledbenchtop

The Turnkey S is the smallest version of the Turnkey machines. It can be set up on a normal worktable. Despite its compact design, it is built up in a modular way and can be equipped for all different plastic welding processes with the Modula components. Control system, laser, and cooling are placed in the cabinet on the back side. No separate laser unit is needed. The welding process can be set up and observed on the touchscreen user interface. Keyboard and mouse can optionally be connected to USB ports on the front of the machine. At the backside, an HDMI port allows the connection of a larger monitor. For the welding process a small lifting door is opened. For setting up the welding process and for maintenance the complete front cover can be raised providing good access to all components. The drawer for part handling as well as the lifting door can be actuated manually, pneumatically, or electrically. A rotary table is available in both manual or electrical versions. The Turnkey S can be connected to a local computer network by an Ethernet interface on the backside of the machine. Process data and welding recipes can be both uploaded and downloaded as needed by the user. A secure internet connection can be established for remote services and maintenance.
