Plastics welding laser module Modula

CWfiber opticnear-infrared

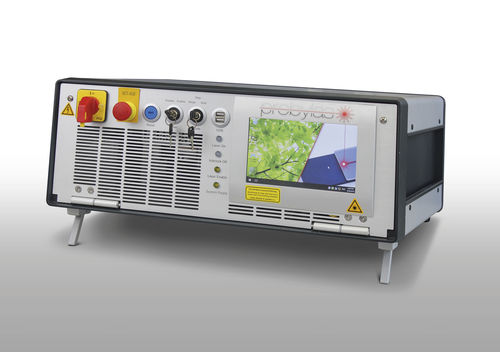

The laser unit is the central component of the Modula product family. Besides the laser itself, it also comprises the system control, interfaces, and control elements. On the touch-screen, the welding process is set up and observed during operation. Optionally a keyboard and mouse can be connected to the USB ports as well as a larger screen to the HDMI port on the backside. The connections for other Modula components as well as the interface for automation carried out by digital and analog inputs and outputs are located on the backside of the laser unit. The safety controls for emergency stop and two-channel interlock can be configured in different ways allowing integration up to the highest Performance Level e according to EN13849 standard. Laser power - 40 - 200 W Wavelength laser - about 980 nm Laser class - 4 (red pilot laser 2) Air cooling - Protection class IP20 or IP30 (optionally filter mat) Ambient temperature - 35/40 °C - depending on laser power and type air cooling Electrical supply - 100-240 V, 50/60 Hz, <10 A Network - Ethernet RJ45 on the backside Dimensions - 520 x 430/530 x 215 mm depth depending on configuration
