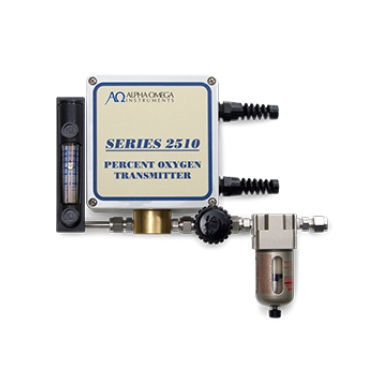

Oxygen analyzer ALPHA OMEGA INSTRUMENTS™ 2500/2510™

monitoringfor the food industry

Percent Oxygen Analyzer with Excellent Speed of Response & Low Cost of Ownership Our ALPHA OMEGA INSTRUMENTS™ Series 2500/2510™ Percent Oxygen Transmitters are blind transmitters designed to provide exceptional performance, accuracy, and stability. Percent oxygen measurement ranges are available from 0-2% to 0-100%. The Series 2500/2510 Percent Oxygen Transmitter is designed to provide accurate and dependable percent oxygen measurements in a variety of background gases. Measurement ranges available are from 0-2% to 0-100%. The Series 2500/2510 Percent Oxygen Transmitter features an enclosure that is made from durable polycarbonate and is rated for NEMA 4 (IP 66) service (may change with the addition of certain optional equipment). A 4-20 mADC output is provided that can be used with a data logger, recorder, PLC, DCS, etc. Options include pressure regulators, flow meters, sample filters. The Series 2500 is the loop powered version, and the Series 2510 is the AC powered (115/230 VAC, 50-60 Hz) counterpart and is recommended when AC power is available or preferred. Also, available in optional 24 VDC. In addition to the optional equipment mentioned above, the Series 2510 can be equipped with a sample pump. The Series 2500/2510 Percent Oxygen Transmitter feature an extended life oxygen sensor with EES (enhanced electrolyte system).
