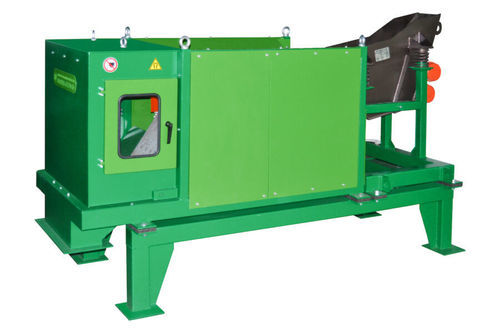

Non-ferrous metal separator VS series

eddy currentfor the recycling industryprocess

Designed for extracting non-ferrous metals from non-conductive materials. Supplied to enterprises of the following industries: - municipal engineering; - glass industry; - industrial waste recycling; - electronic waste recycling; - cullet recycling Application industries: Cable recycling Glass and porcelain industry Municipal engineering Processing (recycling) of cullet Processing of plastic waste Recycling of household appliances Solid household waste recycling WEEE and PCB's recycling WEEE recycling Principle of operation: The initial product is fed into the working area of the magnetic roller by belt conveyor. Rotated product creates an effect of a rotating magnetic field, inducing an electromotive force and generating eddy currents in the objects of non-ferrous metals. Interaction of the induced eddy currents with rotating magnetic field generates the electrodynamic forces that alter the trajectory of the conductive objects relative to the path of non-conductive materials. Design features of the separator: - Fiberglass drum shell is protected from contact with metal impurities, broken glass and other impurities using a special conveyor belt, having twin side corrugations. - Adjustable speed of the conveyor, between 1 m/s to 2.5 m/s. - Adjustable rate of rotation of magnetic drum, between 1000 rpm to 3000 rpm. - Special magnetic system provides efficient extraction of metals with size of fraction up to 3 mm. - Components of the world leading companies (Nord, SKF) with high performance are used. Our company will help you to choose the equipment and calculate the price based on your requirements.
