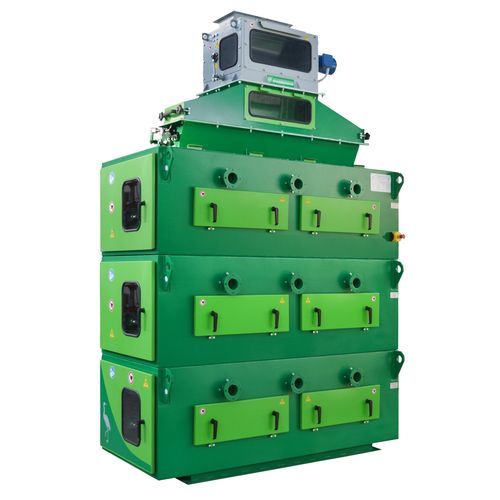

Quartz sand separator RS

magnetic rollerfor production lineshigh-intensity

Designed for high-performance dry magnetic separation of fine-grained ore and non-metallic minerals (ilmenite, zircon, garnet, quartz sand, pegmatite, feldspar, abrasives, refractories, etc.). Supplied to enterprises of the following industries: - titanium and magnesium industry; - refractory materials industries; - glass industry; - abrasive industry; - mining and processing of non-metallic minerals; - other industries. Principle of operation: The material is fed into the separation zone, where it is distributed in a thin layer on the surface of a rotating magnetic roller. Under the influence of a strong magnetic field, magnetic particles are attracted to the roller and are carried away from the non-magnetic fraction, which is removed by gravity. The separated magnetic fraction is then discharged from the roller by a scraper. Design features of the separator: - High-intensity neodymium magnets are used in the construction of the magnetic system, which ensures a high level of magnetic induction on the surface of the roller. - The separator is equipped with a frequency converter for smooth adjustment of the roller rotation speed. - The design provides for the possibility of adjusting the position of the separating partition and the angle of inclination of the feeder, which allows optimizing the separation process for different types of materials. - The separator is manufactured in various modifications, which differ in the width and diameter of the magnetic roller, as well as in the productivity and configuration of the separation zone. Application industries: - Titanium and magnesium industry - Refractory materials industry - Glass industry - Abrasive industry - Mining and processing of non-metallic minerals - Other industries More: - High efficiency of separation of fine-grained materials - Adjustable parameters for optimal performance - Robust construction with high-intensity neodymium magnets - Available in various modifications for different production needs Technical characteristics / specifications: - Type: Roller magnetic separator - Model: RS - Application: Dry magnetic separation of fine-grained ore and non-metallic minerals - Magnetic system: High-intensity neodymium magnets - Adjustable roller speed: Yes (frequency converter) - Adjustable separation partition and feeder angle: Yes - Available modifications: Various (width, diameter, productivity, configuration)
