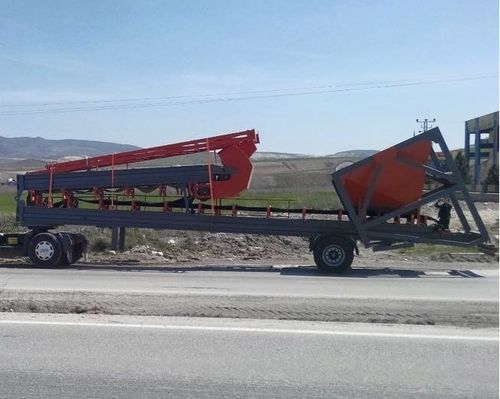

Pre-feeding hopper

concretewith belt conveyor

No need for Feeding Ramp Due to the design of the concrete batching plants, the loading point of the aggregate bunker has a very high distance from the ground. For this reason, it is necessary to build a feeding ramp on one or both sides of the aggregate hopper. Without the construction of this ramp, the aggregate is easily removed to the feeding height of the hopper with a system consisting of a feeding hopper, belt conveyor and pouring chute. Thus, the cost of ramp construction is eliminated. They can be produced as fixed structure or mobile with wheels. There is a 6m³ volume feeding bunker. It works in conjunction with a 800mm wide, 18 meter long loading band.
