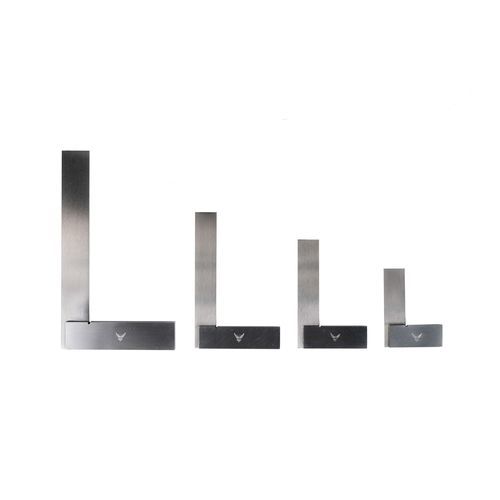

Square 7000 series

Product Overview
Establish a 'True North' for your shop with the PEC Tools Solid Machinist Square. Engineered for ultimate rigidity and accuracy, these squares serve as the definitive 90-degree reference for machine setup, layout work, and inspection.

Key Features

• Master-Grade Accuracy: Precision ground to tight tolerances to ensure dead-square results.
• Hardened Tool Steel Construction: Manufactured from high-quality tool steel with a fully hardened blade to resist wear and maintain its edge over a lifetime of use.
• Precision Ground Surfaces: Both the beam and blade are precision ground to guarantee true right angles on both inside and outside corners.
• Rigid One-Piece Feel: Solid design provides the stability needed for checking machine tables, squaring fences, or calibrating other squares in your collection.
• Comprehensive Size Selection: Available individually from small to large sizes or as multi-piece sets for a complete shop solution.

Size & Tolerance Details

• 2in – 6in sizes: tolerance ±0.0006 in
• 9in – 12in sizes: tolerance ±0.0008 in

Available Configurations

• Individual blade lengths: 2in, 3in, 4in, 6in, 9in, 12in, 18in, 24in (as listed on the product options)
• Multi-piece sets: 3 Piece Set - 2in, 4in, 6in
• 4 Piece Set options: 2in, 3in, 4in, 6in or 4in, 6in, 9in, 12in

Intended Uses

• Machine setup and calibration
• Layout work and fixture alignment
• Inspection and checking other squares or machine tables

Packaging / Part Number
Part #: 7000-002

Technical Specifications

• Material: Hardened tool steel (precision-hardened blade)
• Surfaces: Precision ground beam and blade (true inside and outside corners)
• Tolerances: 2in–6in ±0.0006 in; 9in–12in ±0.0008 in
• Design: Solid one-piece feel for maximum rigidity and stability
• Available: Individual sizes from 2in up to 24in and multiple 3-piece/4-piece set configurations
• Primary uses: machine setup, layout work, inspection, squaring fences and blades
• Product SKU / Part #: 7000-002
