PLASTCure Clear 200
AN ULTRA-TRANSPARENT MATERIAL FOR MEDICAL AND INDUSTRIAL APPLICATIONS
Perfectly adapted to the manufacturing of parts requiring high transparency, PLASTCure Clear materials meet requirements for a wide range of applications in medical 3D printing such as surgical modelling.
KEY FEATURES & BENEFITS

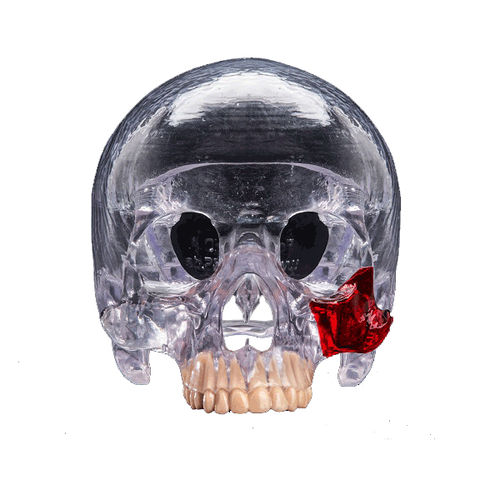

AN IDEAL MATERIAL FOR SURGICAL MODELING
Specific features of PLASTCure Clear 200:
Ultra-clear material with high transparency and superior build speed
For dental drill guides the material is classified and certified as a medical device class I following the European regulation 93/42/EWG. The final product can be sterilized according to the recommendations in the instructions
Can be used as well for various non-medical applications if high transparency is required. On request other medical applications can be evaluated
PLASTCure Clear 200 TECHNICAL SPECIFICATION*
Appearance
Clear
Liquid density (g/cm3)
1.10
Viscosity @ 28°C (cps)
500 - 700
Hardness (Shore D)
85 - 90
Tensile Strength (MPa) ASTM D638
N.A
Strain at Break (%) ASTM D638
N.A
Tensile Modulus (MPa) ASTM D638
N.A
Flexural Strength (MPa) ASTM D790-10
110 - 120
Elongation at Break (%) ASTM D790-10
6 - 10
Flexural Modulus (MPa) ASTM D790-10
2500 - 2700
Izod Impact (J/m) ASTM D256A
N.A
HDT@ 0.46 Mpa (C°) ASTM D648
66 - 69
Residual ash content
No residue
Water Absorption (%) ASTM D570
0.5 - 0.7
