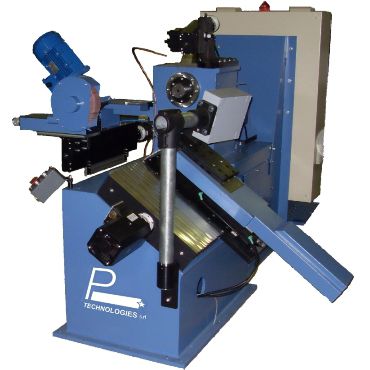

CNC lathe PT76 / PT77
5-axisheavy-dutypolishing

CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
CNC lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
5-axis
Applications
heavy-duty
Other characteristics
polishing
Diameter

Max.: 360 mm
(14.17 in)

Min.: 0 mm
(0 in)

Spindle speed

3,000 rpm
(18,849.556 rad.min-1)

Description

Automatic units of brushing and / or polishing on outer surfaces or internal satin-finish. Can be equiped with turrets for edge trimming. Machines with electrical axis and brushless motors specifically designed for machining aluminum cookware. A wide range of models is available: PT76S Lathe for external brushing operation on the cookware, side and bottom. Can be equipped with an additional turret for edge trimming or curl. PT76SI Machine for internal brushing of white aluminium cookware. The programming system and the special shape of satin heads allows a uniform processing across the internal surface of the cookware. PT76S2 Special satin lathe with modular dual function: it allows the processing of both internal and exterior through the replacement of working units. PT77 Machine for brushing / polishing specially designed for working casseroles. Equipped with a special tailstock to work even large cookware.
