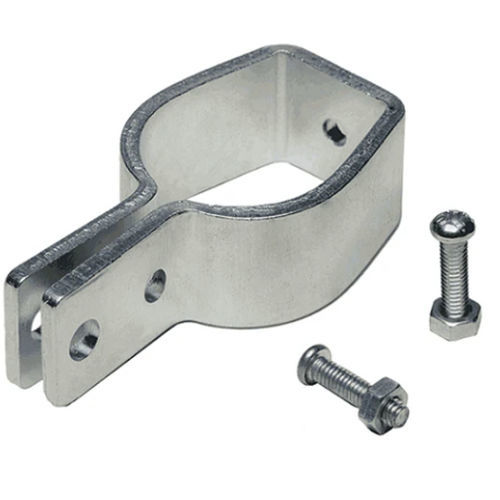

Actuator mounting bracket BRK-03

shaft-mounted

This mounting bracket is specifically designed to be mounted on the shaft of the actuator to provide additional actuator support or alternative mounting option. Depending on the stroke size multiple brackets can be used on a single actuator. The length of the mounting bracket is 2.60", width 0.78" and height is 1.25". The weight of each bracket is 0.05 lbs. The brackets fit perfectly PA-14 and PA-14P actuator models. Please note that the BRK-03 will only fit stroke lengths that are 2" or above, it will not fit on a 1" stroke model.
