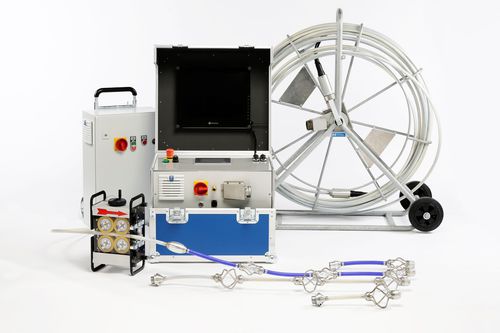

UV curing unit 2025014/ 2025015

for resin

• bend capable • 3 x 200 W DN 100 • 3 x 200 W DN 150 • with 30/40 m push cable with reel and camera without rotary transmitter OR with rotary transmitter for unwinding • UV control unit with data logging and video recorder • adjustable cable traction unit • Two sensors measure the reaction temperature of the resin and the air temperature inside the liner • Protocol: Air pressure inside the liner, throughput speed, lamp function, video picture. Technical Data DimensionsTotal length 30 mm, Length Segment 110 cm, Diameter DN 100: 70 mm; Diameter DN 150: 103 mm Weight2 x 30 kg Performance3 x 200 W UV-lamps Bend capabi- litiesFor bends up to 90° EquipmentFeed unit, control unit Control unit DimensionsLength: 525mm, Width: 400mm, Height: 540mm Weight30 kg
