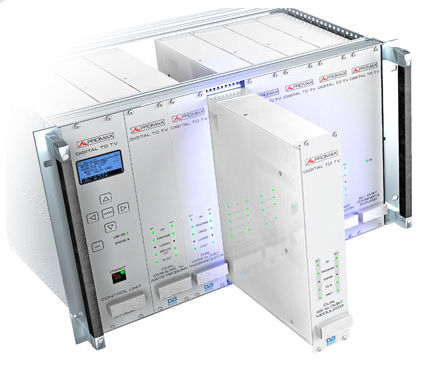

DVB modulator DT-102

DT-102: Dual DVB-T Modulator DT-102 (dual) modules are COFDM modulators compatible with DVB-T standard. They have TS-ASI input and RF output in the UHF band and are agile in frequency and output level. Inputs can contain services in all sorts of formats: SD, HD, MPEG-2, MPEG-4, etc. With PROMAX exclusive PID filtering function the user can remove video, audio or data services from the original Transport Stream. In case of using the DT-302 as a receiver, the system allows to reduce bit rate of the incoming satellite transponders to values that can be used in COFDM. The dual DVB-T modulator (DT-102), includes an internal combiner that delivers a single DVB-T output with high C/N. This feature gives great robustness to the signal, allowing adding RF amplifiers in cascade during distribution with minimal loss of signal quality.
