Description
This brush uses Promax unique plastic injection technology. The one step plastic injection base has higher intensity and lighter weight. The weight reduction helps to reduce the load of the machine, hence, increase the life of the equipment.
This brush lasts at least 30% longer than the competing brands and is perfect for surface treatment, such as polishing and deburring.
Compared to the straight filament disc brush, this brush has a filament inclination of 15 degree, which helps to form a better radius. This works the best when the customer has higher requirement on the radiusing.
All Promax brushes are highly customizable. Please contact sales to create the best brushes for your needs.

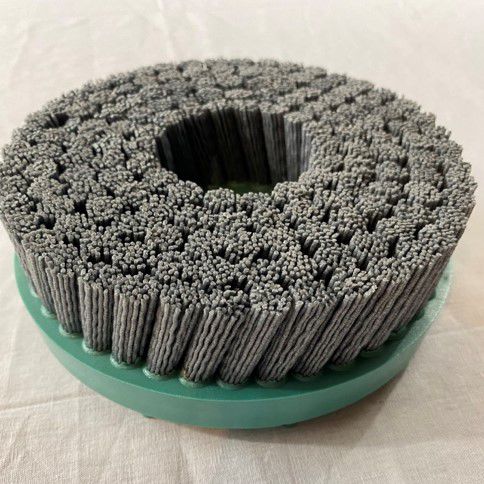

Picture model's diameter is 6”, with a 1 1/8” filament length. All Promax brushes are highly customizable. Please contact sales to create the best brushes for your needs.
Model Parameter
Grit Mesh: 120#
Filament Diameter: 1.1 mm
Filament Inclination: 15 degree
Hole Number: 150
Material: Silicon Carbide
General Parameter
OD(mm): 45,55,65,75,85,95,105,120, 150,180,200
Arbor Hole (mm): 18,20,25
Trim Length (mm): 18,20,25,30,35,38,40,45
Grit Mesh: 36#,60#,80#,120#,180#,240#,320#,500#,600#,800#,1000#
