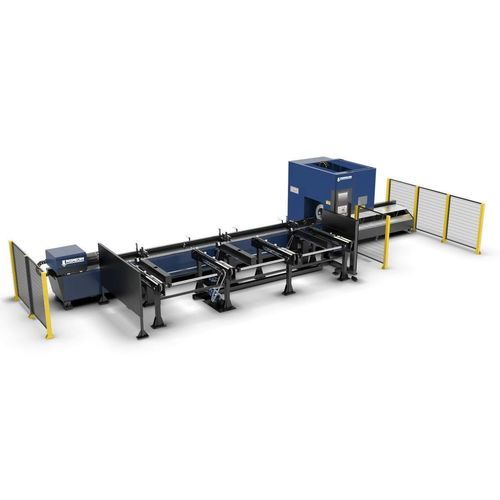

Fiber laser cutting machine 6160/3

for metalprofiletube

Product overview
Tube processing shows high potential for expansion. The Fulgor Tube fibre laser enables access to the tube cutting market with a limited investment. Robust and versatile machines able to process tubes, profiles and bars. Automatic loading systems for tubes and profiles are available.

Interface and software

• 4.0/5.0 interface for advanced drawing, nesting and CAM programming to connect technical and production departments.
• Feedback flow on parts produced and processing times to support quotations and identify critical points.

Ergonomics and productivity
Automatic loading systems for bars and profiles reduce manual loading operations and increase production profitability. Systems and automation solutions are available to optimise machine efficiency.

Intrinsic quality
The Fulgor Tube system is built using high-quality components including:

• Raytools, Boci, or Precitec cutting head
• MAX or Raycus laser source
• Yaskawa motors
• HIWIN linear guides
• Motovario/Neugart gear motors
• Atlanta racks
• NSK bearings
• Schneider electrical components

Hassle-free production and predictive maintenance
Fulgor Tube production is subject to quality controls according to Promecam Quality Protocol. The machine can be equipped with the WATT⚙️ sensor and Smart mAIntenance system to detect potential anomalies in advance and provide information on electrical consumption, production times and equipment utilisation.

Minimum length, bevel and chucks
The Fulgor Tube machine has a minimum processing length of 50 mm to minimise waste. Three-chuck machines can process the entire length of the tube without scrap. A Bevel function is available for inclined cuts on tubes and profiles. Chucks are designed to match the types of profiles or tubes to be cut to guarantee productivity.

Loaders
Chain or belt loaders are available to position bars in the feeder without damaging them, suitable for thin tubes, delicate surface finishes or profiles.

Technical Data — Laser cutting machines with 1 chuck and 1 tube rest (table)
Model | 6160/3 | 6240/3
Laser power [kW] | 3 | 3
Input tube length [mm] | 6300 | 6300
Maximum finished product length at outlet [mm] | 1500 | 1500
Maximum diameter [mm] | 160 | 240
X/Y axis positioning accuracy [mm] | ±0,05 | ±0,05
X/Y axis positioning repeatability [mm] | ±0,03 | ±0,03
Maximum X/Y axis speed [mm] | 110 | 110
Maximum spindle speed [rpm] | 150 | 120
Maximum acceleration [g] | 1,2 | 1,2
Maximum chuck load capacity [kg] | 100 | 300
Machine weight [kg] | 4300 | 5500
Remaining scrap [mm] | 50 | 50
Type/model of CNC | CypCut 3000 | CypCut 3000
Dimensions L×W×H [mm] | 11377×2423×2475 | 11383×2423×2600
Tube outfeed support method | Variable groove support wheel (up to 1500 mm) | Variable groove support wheel (up to 1500 mm)
Tube outfeed support method [optional] | Floating table (up to 3000 mm) | Floating table (up to 3000 mm)
Semi-automatic loading system | Optional | Optional
Fully automatic loading system | Optional | Optional

Technical Data — Laser cutting machines with 2 chucks and 1 tube rest (table)
Model | 6240/3 Max | 6350/6 Max | 9350/6 Max | 12350/12 Max
Laser power [kW] | 3 | 6 | 6 | 12
Input tube length [mm] | 6300 | 6300 | 9300 | 12300
Maximum finished product length at outlet [mm] | 6000 | 6000 | 6000-9000 | 6000-9000-12000
Maximum diameter [mm] | 240 | 350 | 350 | 350
X/Y axis accuracy [mm] | ±0,05 | ±0,05 | ±0,05 | ±0,05
X/Y axis repeatability [mm] | ±0,03 | ±0,03 | ±0,03 | ±0,03
Maximum X/Y axis speed [mm] | 110 | 110 | 110 | 110
Maximum spindle speed [rpm] | 120 | 120 | 120 | 120
Maximum acceleration [g] | 1.5 | 1.5 | 1.5 | 1.5
Maximum chuck load capacity [kg] | 500 | 600 | 800 | 1000
Machine weight [kg] | 14000 | 16000 | 19000 | 25000
Remaining scrap [mm] | 0 | 0 | 0 | 0
Type/model of CNC | CypCut 5000 | CypCut 5000 | CypCut 5000 | CypCut 5000
Dimensions L×W×H [mm] | 16100×3080×3650 | 16100×3080×3650 | 19100×3080×3650 | 22100×5000×2560
Tube outfeed support method | Floating table | Floating table | Floating table | Floating table
Semi-automatic loading system | Optional | Optional | Optional | Optional

Characteristics / Technical specifications

• Commercial name: Fulgor Tube
• Brand: Promecam
• Available laser powers: 3 kW, 6 kW, 12 kW
• Input tube lengths: typical options 6300 mm, 9300 mm, 12300 mm (depending on model)
• Maximum finished product length at outlet: from 1500 mm up to 6000–12000 mm depending on model
• Maximum diameters: from 160 mm up to 350 mm depending on model
• Minimum processing length: 50 mm
• X/Y axis accuracy: ±0,05 mm; repeatability: ±0,03 mm
• Maximum X/Y axis speed: 110 mm/s
• Spindle speeds: up to 150 rpm (some models) or 120 rpm (other models)
• Maximum acceleration: 1.2 g (smaller models) or 1.5 g (larger models)
• Maximum chuck load capacity: from 100 kg up to 1000 kg depending on model
• Machine weight range: approx. 4,300 kg up to 25,000 kg depending on model
• Remaining scrap: 50 mm for some single-chuck models; 0 mm for multi-chuck (Max) configurations
• CNC types: CypCut 3000 (single-chuck) or CypCut 5000 (multi-chuck)
• Tube outfeed support: variable groove support wheel (up to 1500 mm) or floating table (optional up to 3000 mm or standard on larger models)
• Loading systems: semi-automatic or fully automatic loading systems optional; chain or belt loaders available for delicate materials
• Optional bevel function for inclined cuts on tubes and profiles
