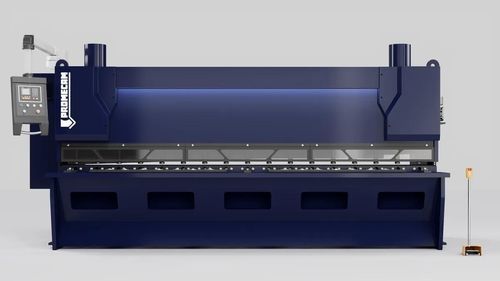

Electro-hydraulic shear Mercurius

for metalsheet metalguillotine

Product overview
Mercurius guillotine shears are engineered to deliver precise mechanical cuts while preserving the surface and metallurgical properties of sensitive materials such as pre-painted and galvanised sheet metal. Cutting is performed without heat input, avoiding oxidation and changes to the metal's crystalline structure.

Affordable and efficient solution
These shears provide an economical and compact alternative to laser or plasma cutting, offering lower operating costs while ensuring consistent cut quality for production environments.

Surface preservation
Mechanical shearing maintains surface integrity, making Mercurius particularly suitable for applications where appearance and material performance must be retained for downstream processes or final products.

Accessories and notable features

• Predictive maintenance and power usage analysis with remote monitoring and consumption trend reporting.
• Rigid high-strength welded frame with high-temperature stress-relief treatment to minimise deformation and increase stability.
• Motorised adjustable blade clearance to optimise cutting for different materials and thicknesses.
• CNC-adjustable cutting angle to adapt to varying sheet characteristics.
• Rear support options: Type 1 concealed support; Type 2 pneumatic support with lift-before and lift-after cut functions for thin sheets.
• EasyCut CNC systems for compact, user-friendly numerical control and machine interfacing.
• Anti-twist system: hydraulic piston along the cutting line to clamp and prevent twisting of long, thin strips.
• Front feeding table driven by double ball screw and linear guides; brush table with steel balls to reduce scratches; pneumatic clamps for loading.
• Suction cup plate lifter for safe handling of large or heavy sheets.
• Automatic belt stacker for post-cut stacking and evacuation of cut sheets.
• Energy-saving servopump option for improved efficiency, precision and reduced energy consumption.
• CE-compliant safety systems: certified safety module, rear infrared barrier, interlocked power switch on the electrical cabinet door, safety microswitch on front guard.

Gallery highlights
Images typically show rear support types, front safety guard, infrared rear barrier, front feeding table details, servomotors for backgauge, ball transfer units and heat exchanger for intensive cycles.

Technical Data
3000 mm variants
Model | 0630 | 1230 | 2530
Max S275 thickness | 6 mm | 12 mm | 25 mm
Nominal cutting length | 3000 mm | 3000 mm | 3000 mm

4000 mm variants
Model | 0640 | 1240 | 2540
Max S275 thickness | 6 mm | 12 mm | 25 mm
Nominal cutting length | 4000 mm | 4000 mm | 4000 mm

6000 mm variants
Model | 0660 | 1260 | 2560
Max S275 thickness | 6 mm | 12 mm | 25 mm
Nominal cutting length | 6000 mm | 6000 mm | 6000 mm

Characteristics / technical specifications

• Commercial name: Mercurius guillotine shears.
• Manufacturer: Promecam.
• Available model families (by nominal cutting length): 3000 mm, 4000 mm, 6000 mm.
• Representative model codes: 0630 / 1230 / 2530 (3000 mm); 0640 / 1240 / 2540 (4000 mm); 0660 / 1260 / 2560 (6000 mm).
• Maximum S275 thickness per family: 6 mm, 12 mm and 25 mm depending on model code.
• Nominal cutting lengths: 3000 mm, 4000 mm, 6000 mm (depending on selected variant).
• Motorised blade clearance adjustment and CNC-adjustable cutting angle.
• Rigid welded frame with high-temperature stress relief for reduced deflection and improved stability.
• Optional systems: anti-twist clamp, front feeding table with ball transfer/brush table, suction cup loader, automatic belt stacker, servopump for energy saving.
• CE-compliant safety components including infrared rear barrier and certified safety module.
